格劳博Grob_GA550_S840D
( NX2000版本正常使用，低版本需自己测试 )
1.解压下载好的安装包，得到以下机床文件
![图片[1]-UG机床仿真文件-格劳博Grob_GA550_S840D-机械资源网](https://www.u557.com/wp-content/uploads/2025/09/20250923114355408-wxsync-2025-09-63211a451dfcfd52988e7d86e03a8aad.png)
2.打开 UG
点击应用模块，进入加工界面

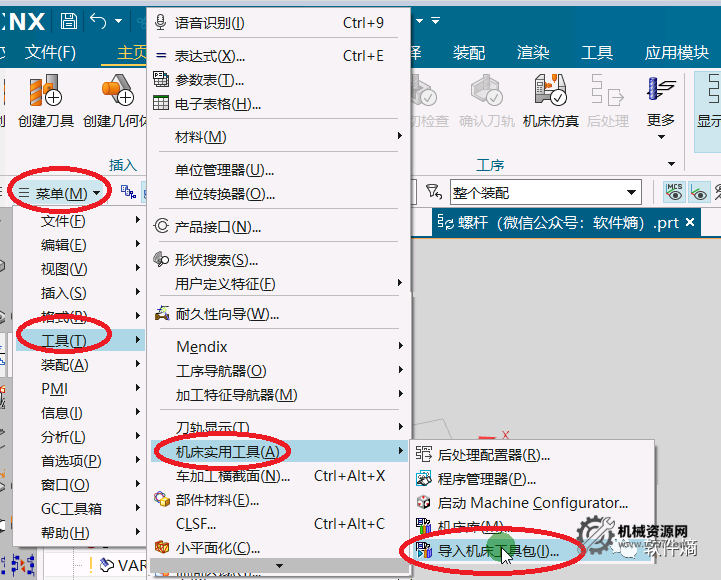

此时点击菜单
点击工具
点击机床实用工具
点击导入机床工具包
![图片[2]-UG机床仿真文件-格劳博Grob_GA550_S840D-机械资源网](https://www.u557.com/wp-content/uploads/2025/09/20250923114357346-wxsync-2025-09-761c05f1a6d8ce4919ff884e6c355050.png)

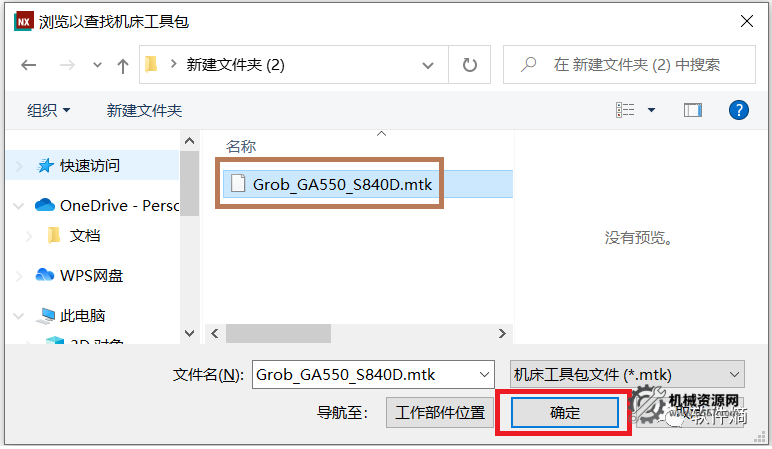

3.选择机床文件 Grob_GA550_S840D.mtk
点击确定
![图片[3]-UG机床仿真文件-格劳博Grob_GA550_S840D-机械资源网](https://www.u557.com/wp-content/uploads/2025/09/20250923114358909-wxsync-2025-09-c2dcc7e7ee5970c1db151aa4b8817c26.png)

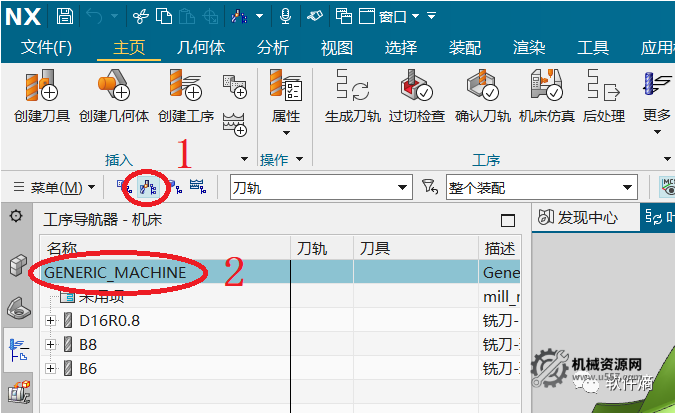

4.打开工序导航器-机床
双击打开 GENERIC_MACHINE
![图片[4]-UG机床仿真文件-格劳博Grob_GA550_S840D-机械资源网](https://www.u557.com/wp-content/uploads/2025/09/20250923114359718-wxsync-2025-09-5a352581c1e0c7f16366924afb81d341.png)

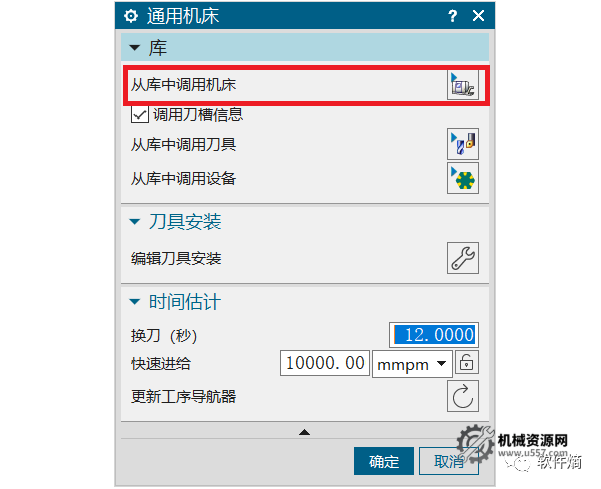

5.点击 从库中调用机床
![图片[5]-UG机床仿真文件-格劳博Grob_GA550_S840D-机械资源网](https://www.u557.com/wp-content/uploads/2025/09/20250923114401981-wxsync-2025-09-30c3fecb3e0c699bdfc6edaef4ba62af.png)

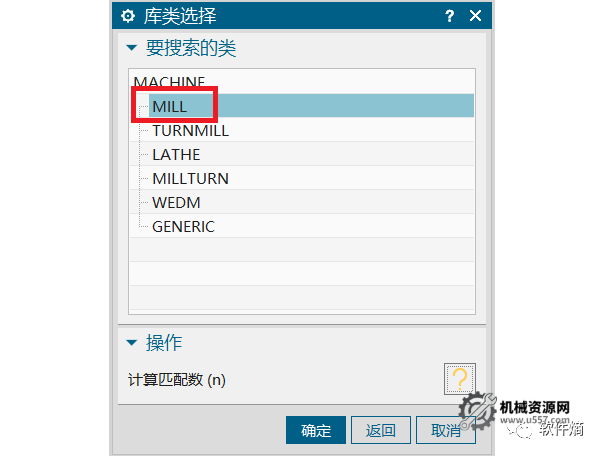

6.点击 MILL
![图片[6]-UG机床仿真文件-格劳博Grob_GA550_S840D-机械资源网](https://www.u557.com/wp-content/uploads/2025/09/20250923114402736-wxsync-2025-09-0932feb5a0d7fc425259b5b4b5998f5d.png)

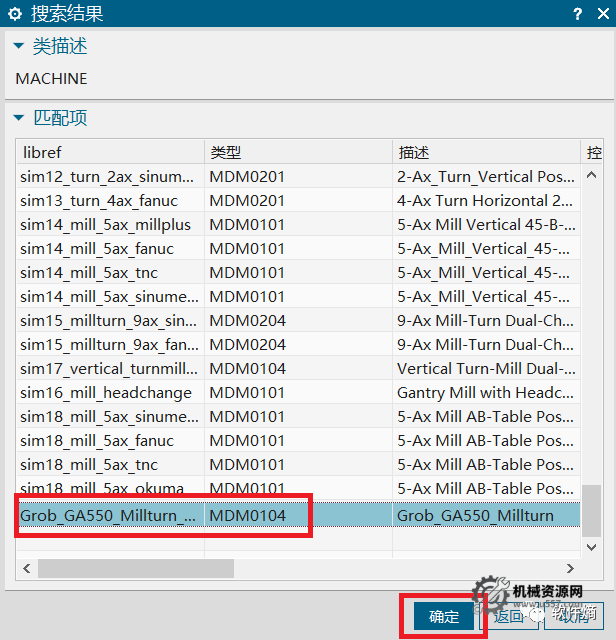

7.在目录中
找到 Grob_GA550 选中
点击 确定
![图片[7]-UG机床仿真文件-格劳博Grob_GA550_S840D-机械资源网](https://www.u557.com/wp-content/uploads/2025/09/20250923114404497-wxsync-2025-09-20837b16dce021beb57e88209da7da9f.png)

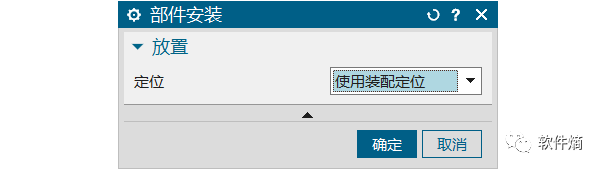

8.点击确定
![图片[8]-UG机床仿真文件-格劳博Grob_GA550_S840D-机械资源网](https://www.u557.com/wp-content/uploads/2025/09/20250923114405625-wxsync-2025-09-8dac027f4777460092772bbac0495b29.png)

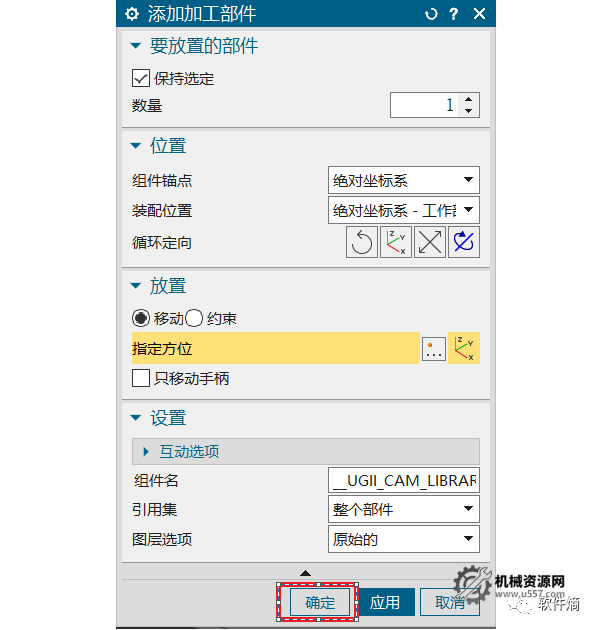

9.点击确定
![图片[9]-UG机床仿真文件-格劳博Grob_GA550_S840D-机械资源网](https://www.u557.com/wp-content/uploads/2025/09/20250923114406789-wxsync-2025-09-bc44d05b71740c843b42dd03d3fb5a48.png)

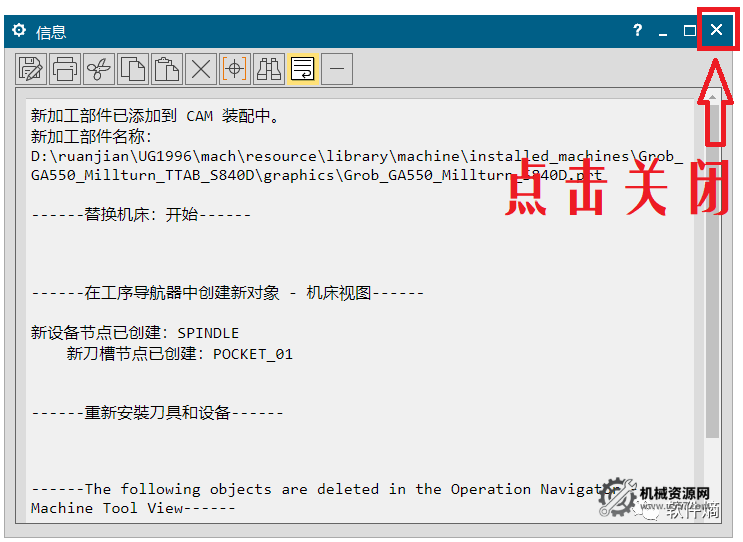

10.点击关闭
![图片[10]-UG机床仿真文件-格劳博Grob_GA550_S840D-机械资源网](https://www.u557.com/wp-content/uploads/2025/09/20250923114407763-wxsync-2025-09-7c08d1712d4df33b174de6789d62d633.png)

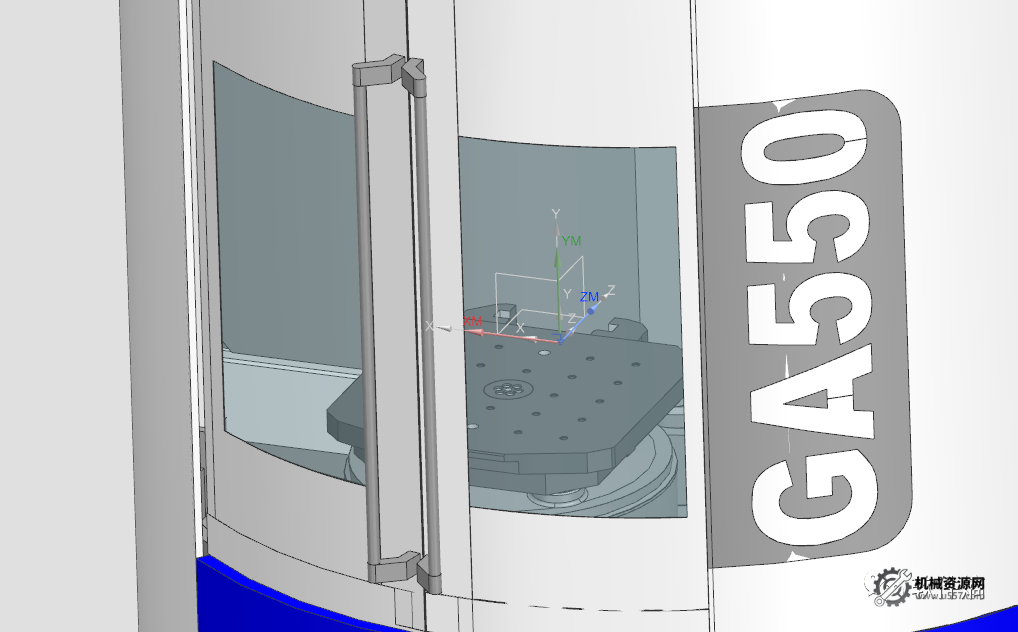

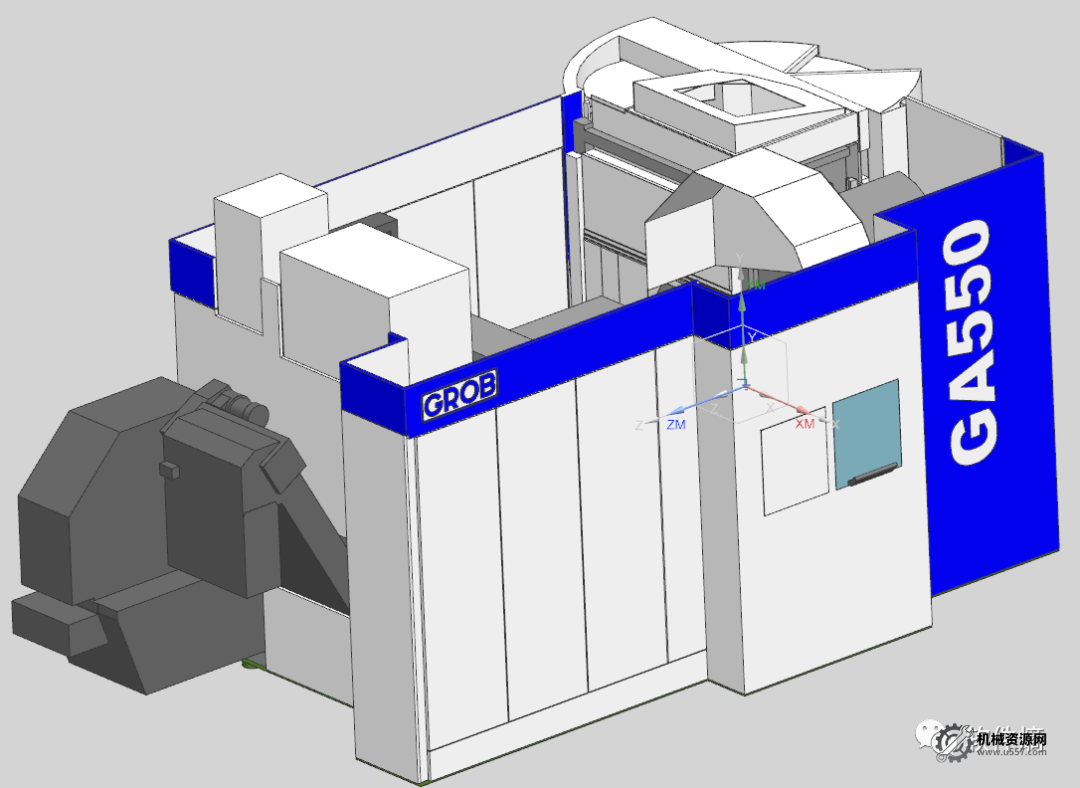

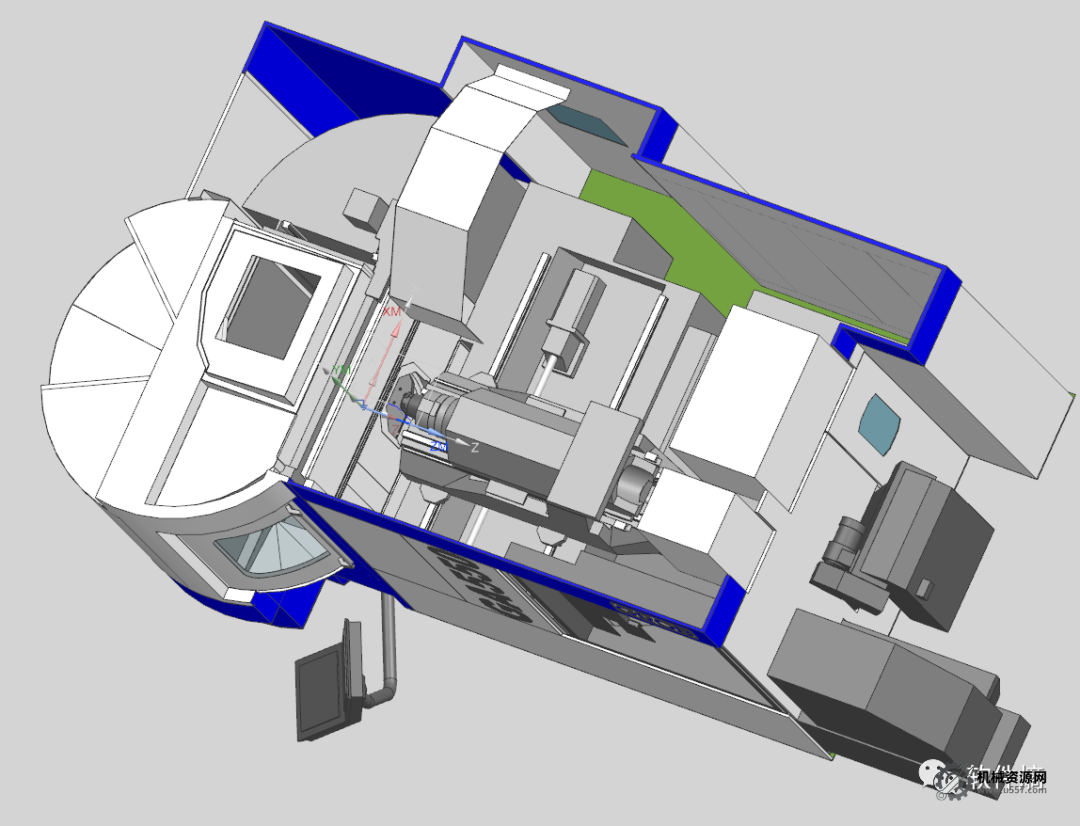

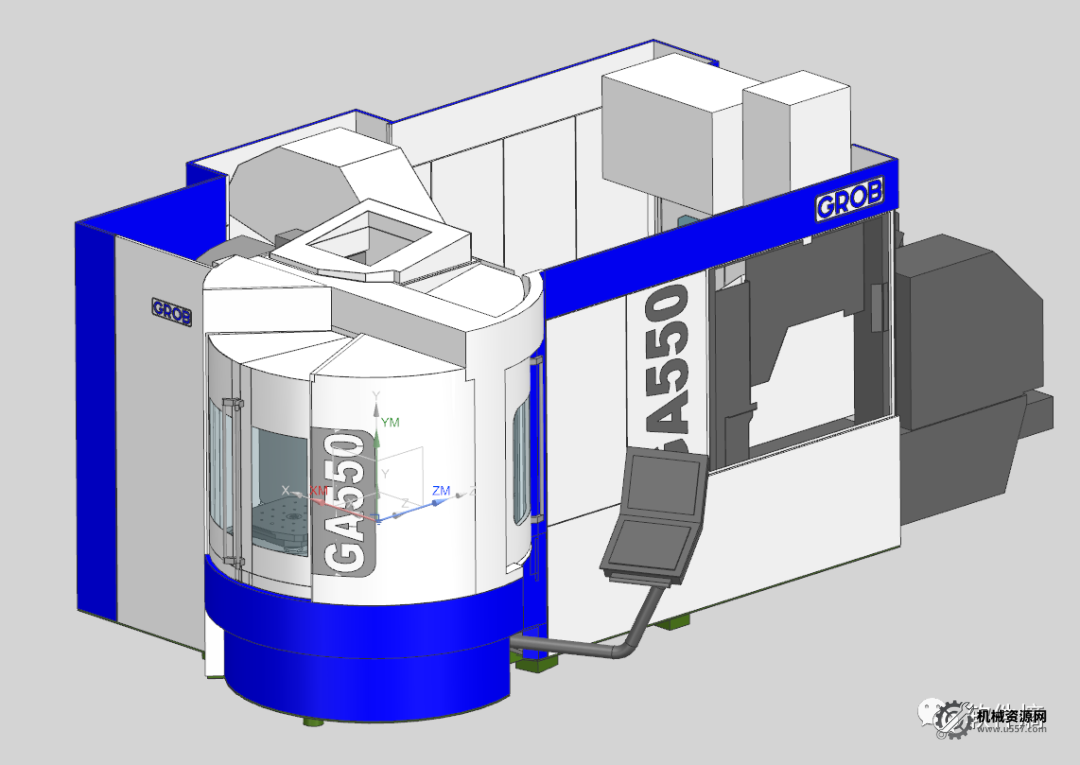

11.机床导入成功
![图片[11]-UG机床仿真文件-格劳博Grob_GA550_S840D-机械资源网](https://www.u557.com/wp-content/uploads/2025/09/20250923114410921-wxsync-2025-09-58fa93dca9c8d379214276d6b9ecbbdf.png)
![图片[12]-UG机床仿真文件-格劳博Grob_GA550_S840D-机械资源网](https://www.u557.com/wp-content/uploads/2025/09/20250923114412988-wxsync-2025-09-b735354dc99f7d317a382ec41f4b242a.png)
![图片[13]-UG机床仿真文件-格劳博Grob_GA550_S840D-机械资源网](https://www.u557.com/wp-content/uploads/2025/09/20250923114415148-wxsync-2025-09-57acff9cac6a9da77034b17cfa64a4ef.png)
![图片[14]-UG机床仿真文件-格劳博Grob_GA550_S840D-机械资源网](https://www.u557.com/wp-content/uploads/2025/09/20250923114417936-wxsync-2025-09-a8502235decb47dfa04a56eacd967084.png)
