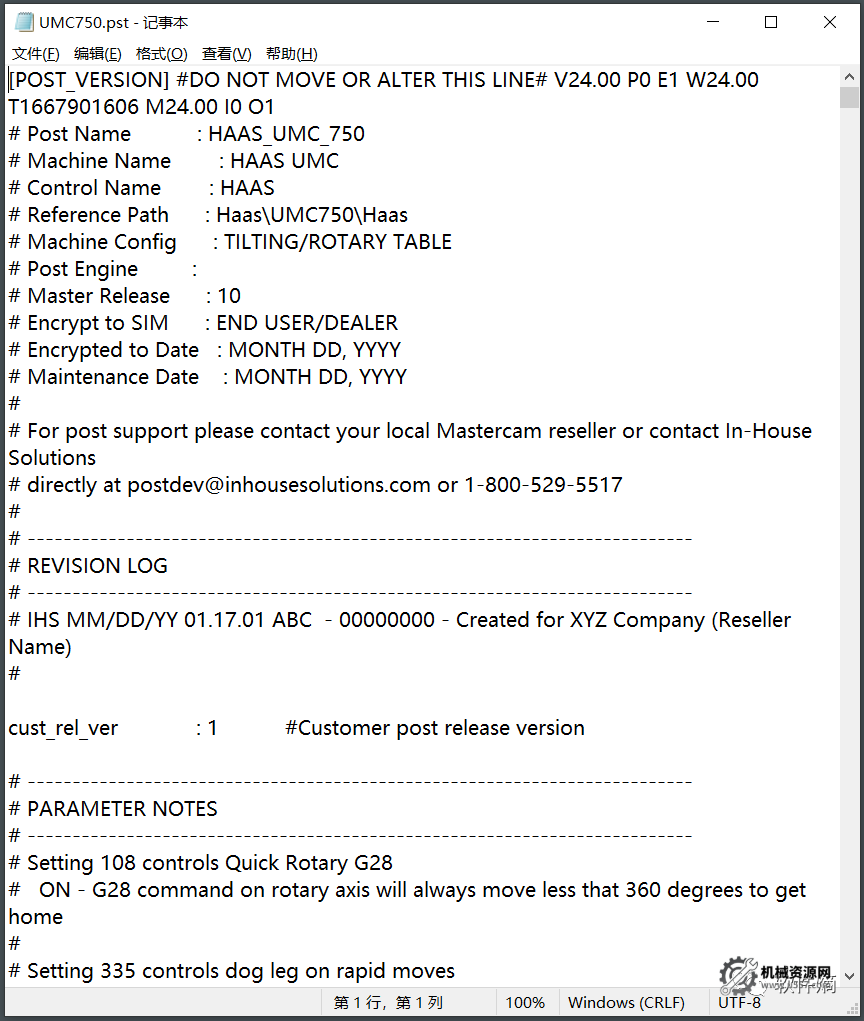

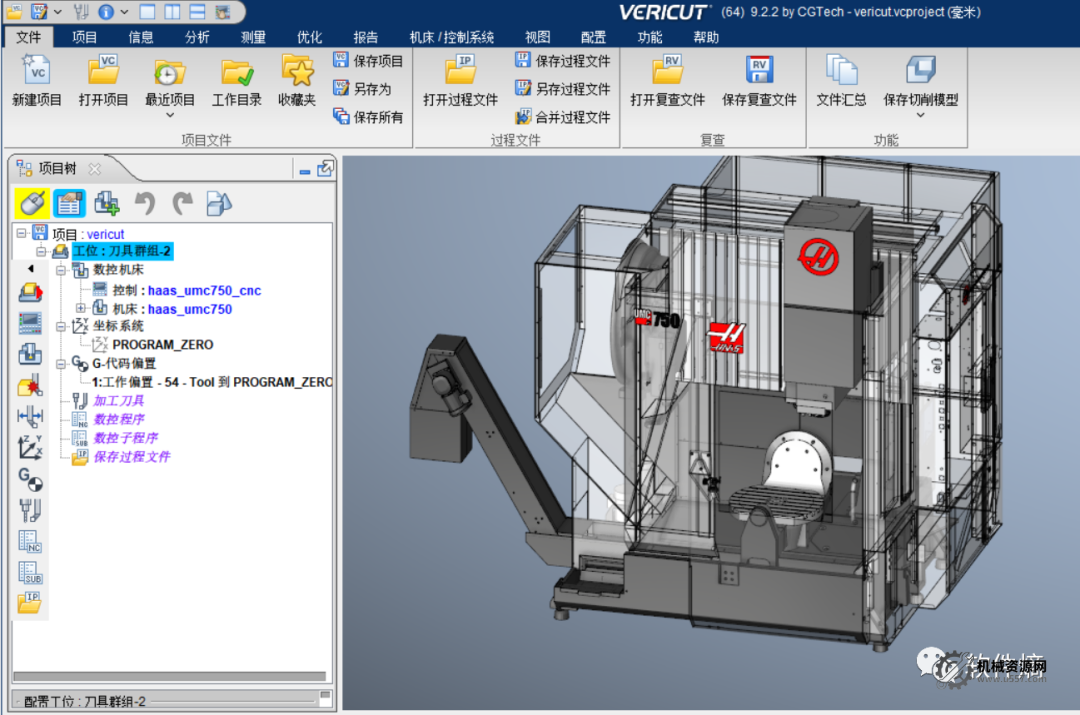

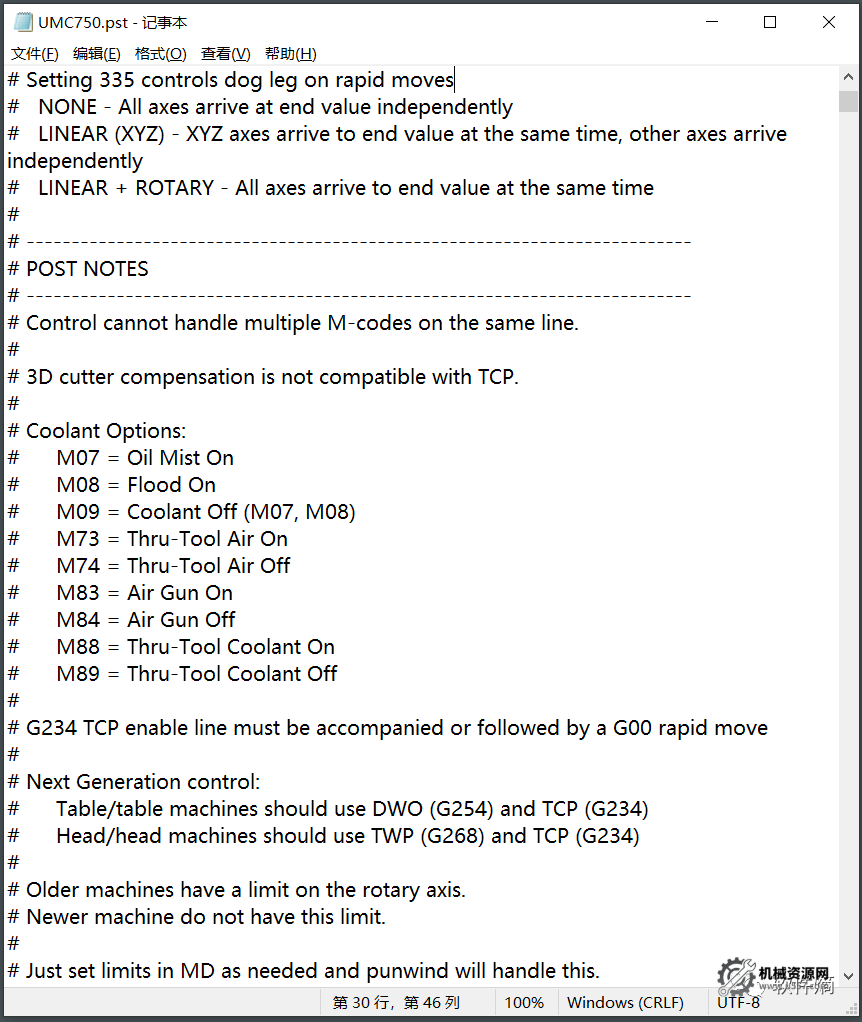

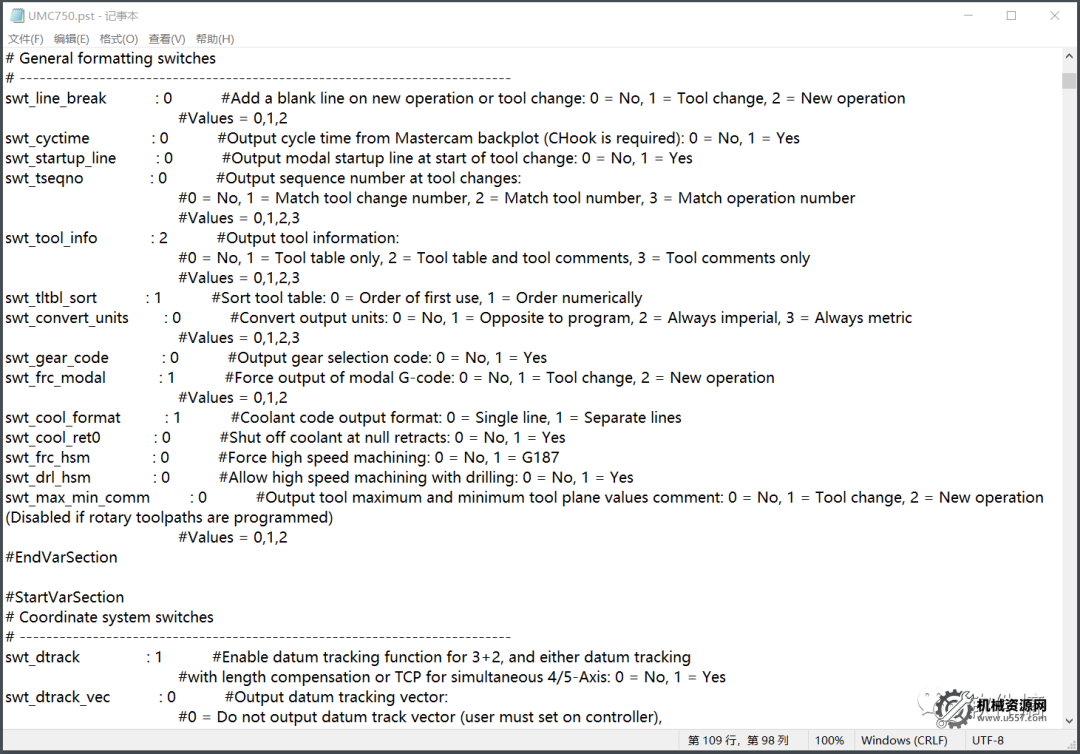

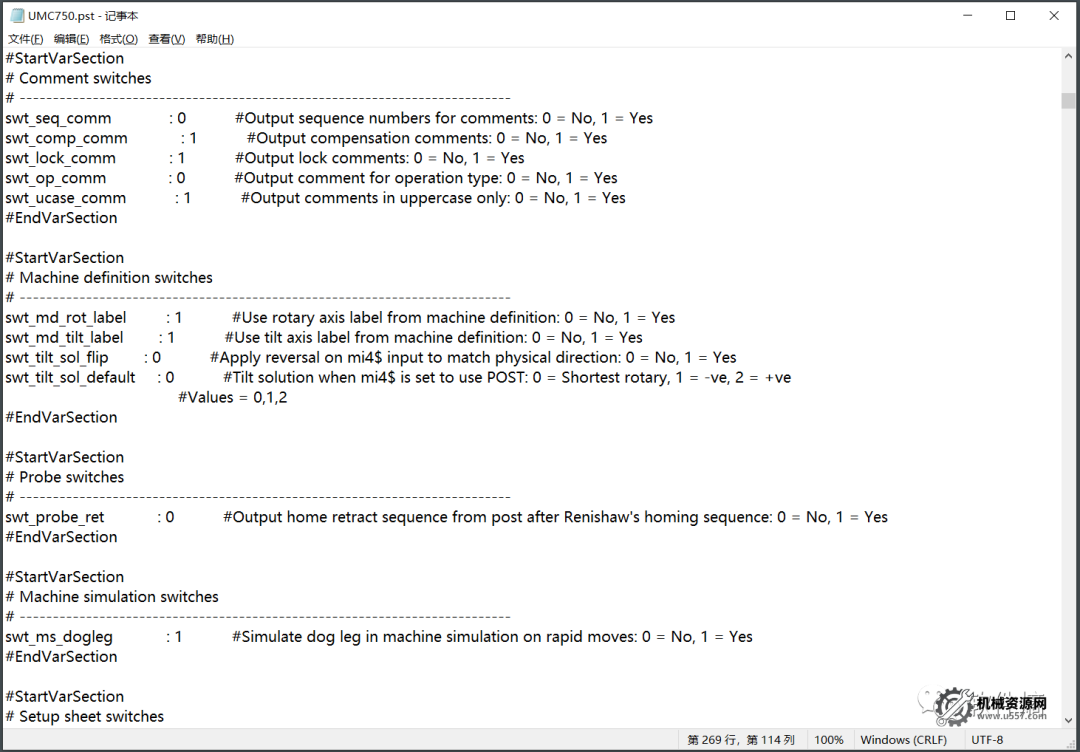

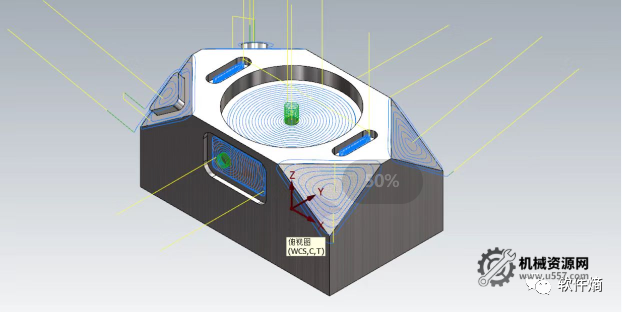

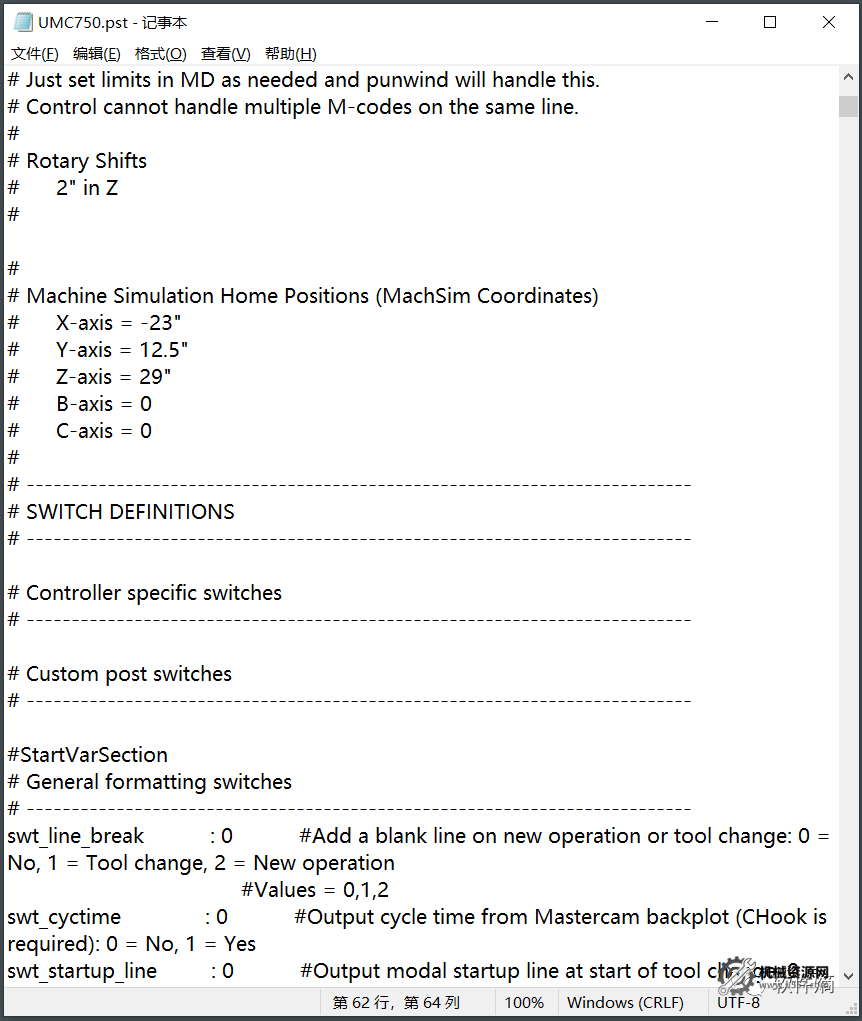

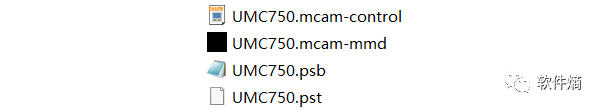

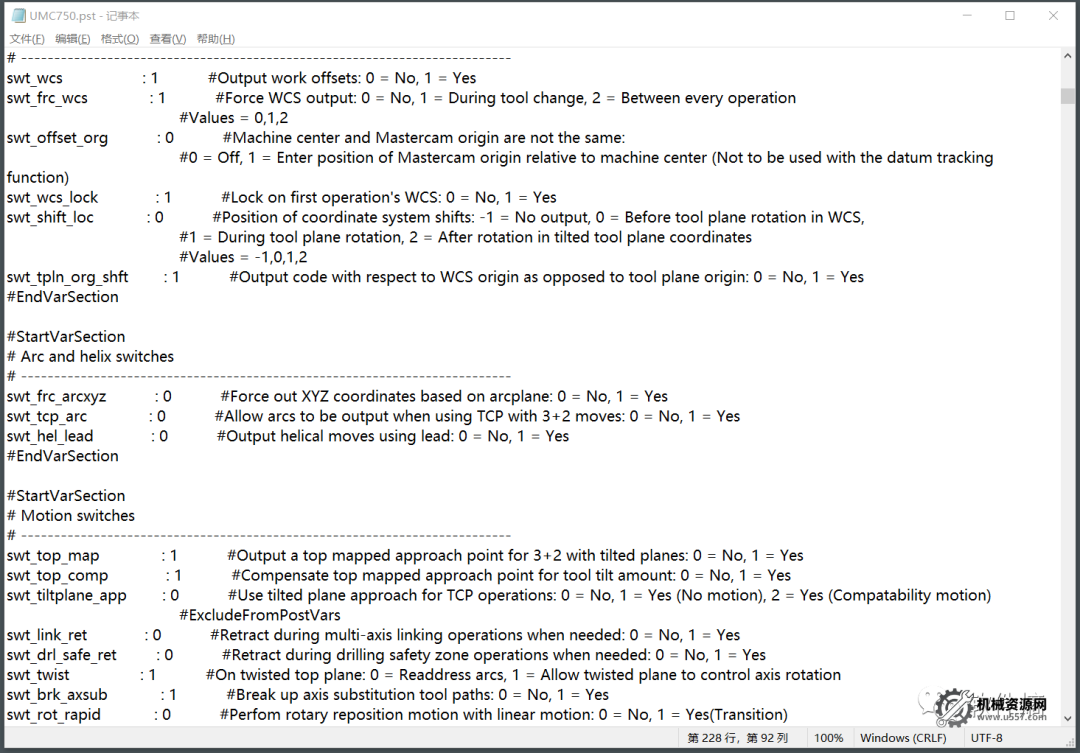

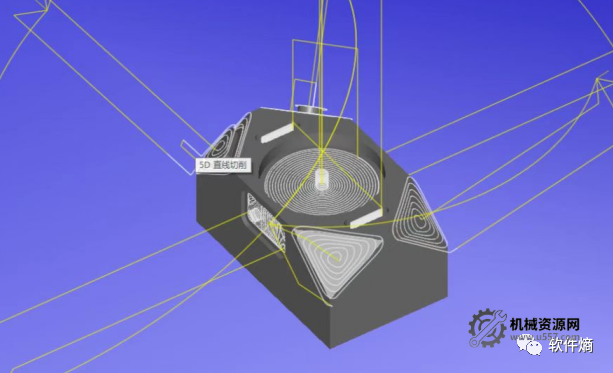

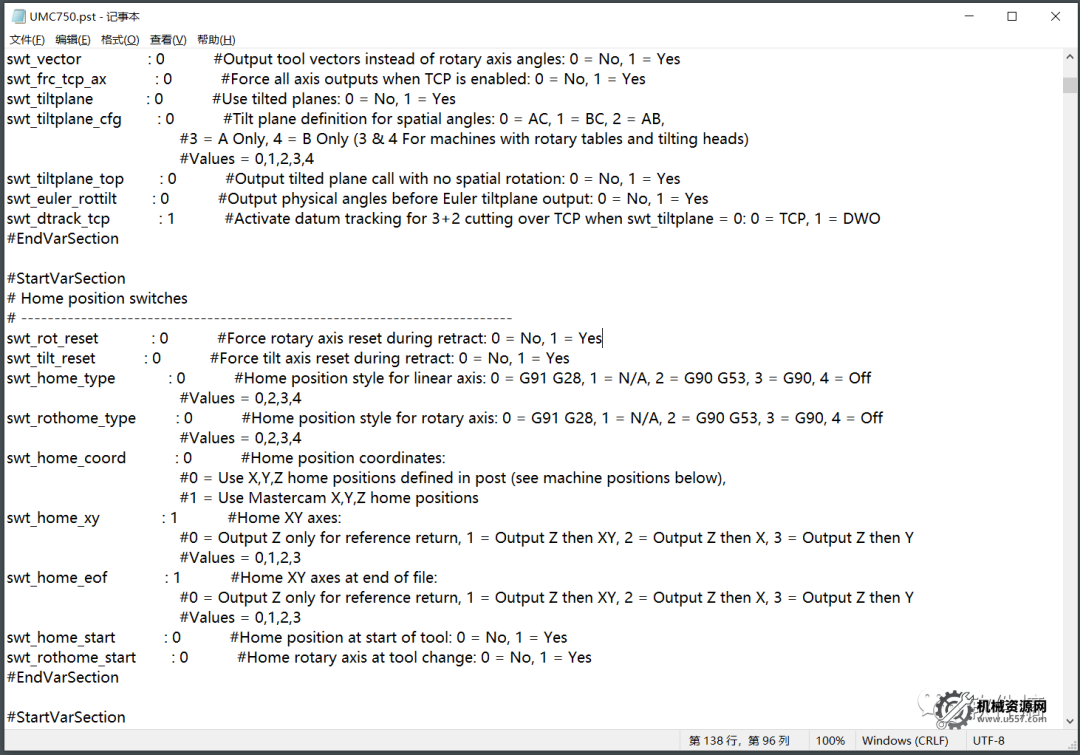

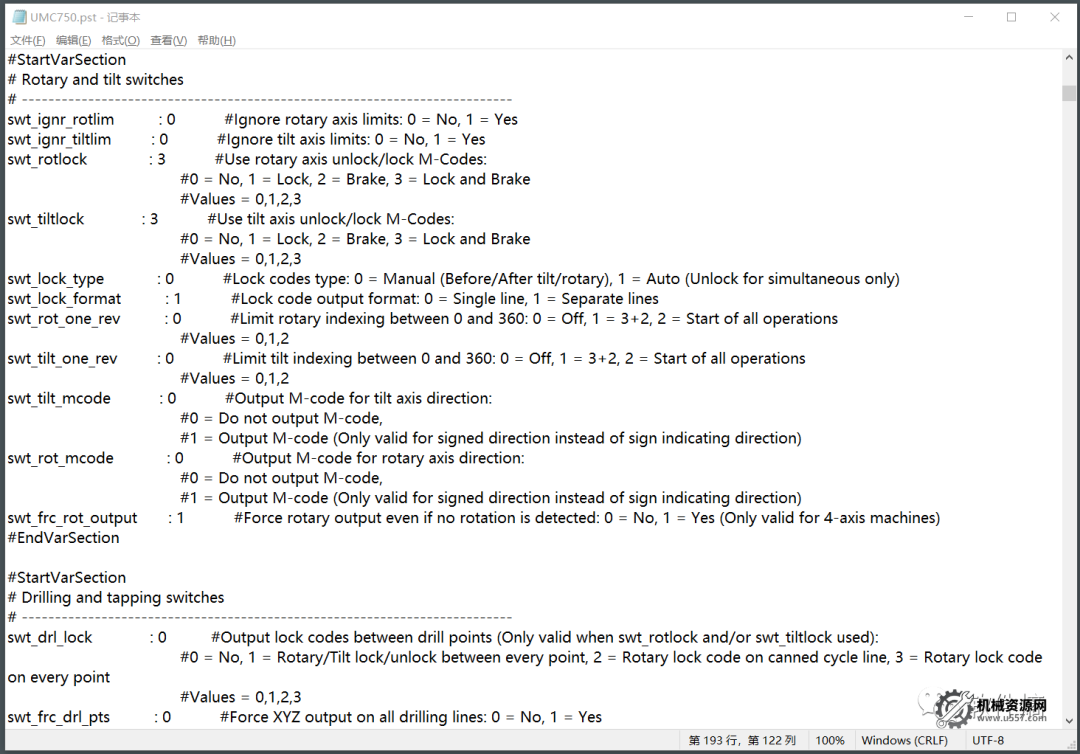

Mastercam2022-哈斯UMC750五轴后处理-带VT仿真文件 温馨提示: 本文最后更新于 2025-09-21 11:31:31，下载链接具有时效性，若已失效，请在下方留言提示站长 Mastercam2022-哈斯UMC750五轴后处理-带VT仿真文件此内容为付费资源，请付费后查看￥5黄金会员免费钻石会员免费登录购买付费资源 Mastercam2022 哈斯UMC750五轴后处理 带VT仿真 程序格式 % O0001 (PROGRAM NAME – 29-1) (MASTERCAM – 2022) (MCAM FILE – E:1.MCAM) (POST – UMC750) (MATERIAL – ALUMINUM MM – 2024) (DATE – FEB-2-2023) (TIME – 7:35AM) (T1 – 8 平底刀 – H1 – D1 – DIA 8.MM) (T2 – 标准钻头 – 8 – H2 – D2 – DIA 8.MM) N100 G00 G90 G17 G21 G40 G80 N110 G91 G28 Z0. N120 G28 X0. Y0. (T1 – 8 平底刀 – H1 – D1 – DIA 8.MM) N130 T1 M06 N140 G00 G17 G90 G54 N150 S1000 M03 N160 M13 (C-AXIS UNLOCK) N170 M11 (B-AXIS UNLOCK) N180 B0. C0. N190 G254 N200 B0. C0. N210 M12 (C-AXIS LOCK) N220 M10 (B-AXIS LOCK) N230 X-3.912 Y.833 N240 G43 H1 Z150. N250 Z71. N260 G03 G94 X-4. Y0. Z70.971 R4. F120. N270 X0. Y-4. Z70.751 R4. N280 X4. Y0. Z70.532 R4. N290 X0. Y4. Z70.312 R4. N8500 X-40.913 Y20.796 R3. N8510 X-42.29 Y20.766 Z42.141 R1.8 N8520 G01 X-43.297 Y20.323 Z42.25 N8530 X-43.358 Y20.296 F2500. N8540 G00 Z125. N8550 G255 N8560 G91 G28 Z0. N8570 G28 X0. Y0. N8580 G00 G90 N8590 M13 (C-AXIS UNLOCK) N8600 M11 (B-AXIS UNLOCK) N8610 B45. C-135. N8620 G254 N8630 B45. C-135. N8640 M12 (C-AXIS LOCK) N8650 M10 (B-AXIS LOCK) N8660 X35.747 Y-20.572 N8670 G43 H1 Z189.497 N8680 Z110.497 N8690 G01 Z89.149 F600. N8700 X35.333 Y-21.157 Z89.031 F150. N8710 G03 X35.029 Y-21.893 Z88.899 R1.8 N8720 G01 X34.78 Y-22.411 N8730 X34.501 Y-22.877 N8740 X34.231 Y-23.26 N6800 X2.629 Y19.587 N6810 X2.41 Y21.373 Z94.149 N6820 G00 Z189.497 N6830 G255 N6840 G91 G28 Z0. N6850 G28 X0. Y0. N6860 G00 G90 N6870 M13 (C-AXIS UNLOCK) N6880 M11 (B-AXIS UNLOCK) N6890 B90. C-270. N6900 G254 N6910 B90. C-270. N6920 M12 (C-AXIS LOCK) N6930 M10 (B-AXIS LOCK) N6940 X-51.416 Y-13.741 N6950 G43 H1 Z145. N6960 Z46. N6970 G03 X-50. Y-14. Z45.949 R4. N6980 X-46. Y-10. Z45.73 R4. N6990 X-50. Y-6. Z45.511 R4. N7000 X-54. Y-10. Z45.291 R4. N7010 X-50. Y-14. Z45.072 R4. N7020 X-46. Y-10. Z44.852 R4. N2070 X-42.29 Y20.766 Z42.141 R1.8 N2080 G01 X-43.297 Y20.323 Z42.25 N2090 X-43.358 Y20.296 F2500. N2100 G00 Z145. N2110 G255 N2120 G91 G28 Z0. N2130 G28 X0. Y0. N2140 G00 G90 N2150 M13 (C-AXIS UNLOCK) N2160 M11 (B-AXIS UNLOCK) N2170 B45. C-315. N2180 G254 N2190 B45. C-315. N2200 M12 (C-AXIS LOCK) N2210 M10 (B-AXIS LOCK) N2220 X35.747 Y-20.572 N2230 G43 H1 Z191.899 N2240 Z92.899 N2250 G01 Z89.149 F600. N2260 X35.333 Y-21.157 Z89.031 F150. N2270 G03 X35.029 Y-21.893 Z88.899 R1.8 N2280 G01 X34.78 Y-22.411 N2290 X34.501 Y-22.877 N2300 X34.231 Y-23.26 N5440 X6.404 Y24.212 Z89.149 N5450 G00 Z191.899 N5460 M05 N5470 G255 N5480 G91 G28 Z0. N5490 G28 X0. Y0. N5500 M01 (T2 – 标准钻头 – 8 – H2 – D2 – DIA 8.MM) N5510 T2 M06 N5520 G00 G17 G90 G54 N5530 S750 M03 N5540 M13 (C-AXIS UNLOCK) N5550 M11 (B-AXIS UNLOCK) N5560 B0. C-360. N5570 G254 N5580 B0. C-360. N5590 M12 (C-AXIS LOCK) N5600 M10 (B-AXIS LOCK) N5610 X0. Y0. N5620 G43 H2 Z140. N5630 G94 N5640 G98 G83 Z-3.403 R61. I2. J0. K0. F90. N5650 G80 N5660 M05 N5670 G255 N5680 G91 G28 Z0. N5690 G28 X0. Y0. N5700 M13 (C-AXIS UNLOCK) N5710 M11 (B-AXIS UNLOCK) N5720 G28 B0. C0. N5730 M12 (C-AXIS LOCK) N5740 M10 (B-AXIS LOCK) N5750 M30 % 本文链接: https://www.u557.com/2658.html © 版权声明教程收集于网络，如有侵权请务必联系站长删除THE END后处理下载数控编程# 五轴后处理 喜欢就支持一下吧 分享QQ空间微博QQ好友海报分享复制链接收藏
![图片[1]-Mastercam2022-哈斯UMC750五轴后处理-带VT仿真文件-机械资源网](https://www.u557.com/wp-content/uploads/2025/09/20250921112633504-wxsync-2025-09-2c8783da517492e7f1e07be8470f6455.png)
![图片[2]-Mastercam2022-哈斯UMC750五轴后处理-带VT仿真文件-机械资源网](https://www.u557.com/wp-content/uploads/2025/09/20250921112636885-wxsync-2025-09-014fe9cbdc50100a29e903f3a4ee9e3f.png)
![图片[3]-Mastercam2022-哈斯UMC750五轴后处理-带VT仿真文件-机械资源网](https://www.u557.com/wp-content/uploads/2025/09/20250921112639676-wxsync-2025-09-be7116db10d2c671d73d85acfed5054e.png)
![图片[4]-Mastercam2022-哈斯UMC750五轴后处理-带VT仿真文件-机械资源网](https://www.u557.com/wp-content/uploads/2025/09/20250921112642708-wxsync-2025-09-556db62d03de78939c7d622addbc06f7.png)
![图片[5]-Mastercam2022-哈斯UMC750五轴后处理-带VT仿真文件-机械资源网](https://www.u557.com/wp-content/uploads/2025/09/20250921112644436-wxsync-2025-09-d9ea1a7db6cd6b018edaf7dfa285dfc0.png)
![图片[6]-Mastercam2022-哈斯UMC750五轴后处理-带VT仿真文件-机械资源网](https://www.u557.com/wp-content/uploads/2025/09/20250921112646297-wxsync-2025-09-d569ff3802900a0ac2b3dbb597dc26d0.png)
![图片[7]-Mastercam2022-哈斯UMC750五轴后处理-带VT仿真文件-机械资源网](https://www.u557.com/wp-content/uploads/2025/09/20250921112648228-wxsync-2025-09-b7ed24754b315b23485200e21d246cf7.png)
![图片[8]-Mastercam2022-哈斯UMC750五轴后处理-带VT仿真文件-机械资源网](https://www.u557.com/wp-content/uploads/2025/09/20250921112650838-wxsync-2025-09-70f4a5ca0f59f4748e81248622465860.png)
![图片[9]-Mastercam2022-哈斯UMC750五轴后处理-带VT仿真文件-机械资源网](https://www.u557.com/wp-content/uploads/2025/09/20250921112653713-wxsync-2025-09-79204998d5cda54fcd7f33d0d4b5c024.png)
![图片[10]-Mastercam2022-哈斯UMC750五轴后处理-带VT仿真文件-机械资源网](https://www.u557.com/wp-content/uploads/2025/09/20250921112656694-wxsync-2025-09-767bec3c0c0dcb34dc09e0792a985beb.png)
![图片[11]-Mastercam2022-哈斯UMC750五轴后处理-带VT仿真文件-机械资源网](https://www.u557.com/wp-content/uploads/2025/09/20250921112659419-wxsync-2025-09-1476b2ac39bcd86763cdae6ad2aa1f0c.png)
![图片[12]-Mastercam2022-哈斯UMC750五轴后处理-带VT仿真文件-机械资源网](https://www.u557.com/wp-content/uploads/2025/09/20250921112702811-wxsync-2025-09-c7105348a8aa03bea2fbf9f17e066d21.png)
![图片[13]-Mastercam2022-哈斯UMC750五轴后处理-带VT仿真文件-机械资源网](https://www.u557.com/wp-content/uploads/2025/09/20250921112704795-wxsync-2025-09-332b86e22d559c301e0f4e2e77add02b.png)
