​Mastercam2022-2024发那科AC轴3+2坐标转换后处理

Mastercam2022-2024发那科AC轴

3+2坐标转换后处理

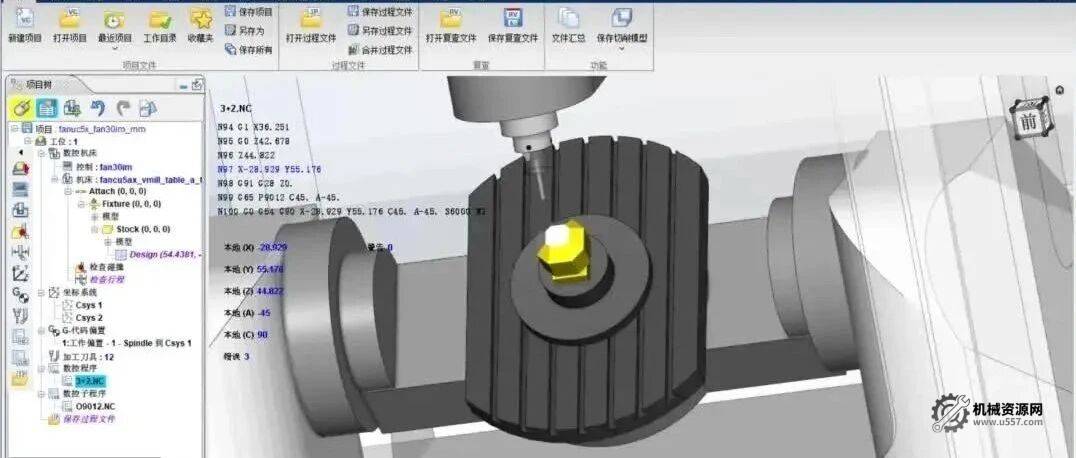

实现工件任意位置摆放

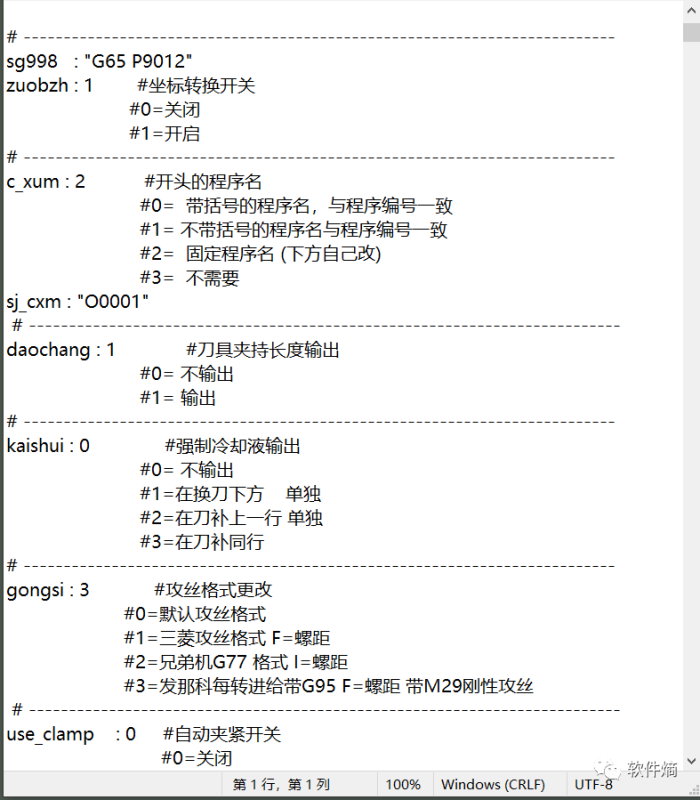

配合定制好的宏代码

实现自动转换坐标加工









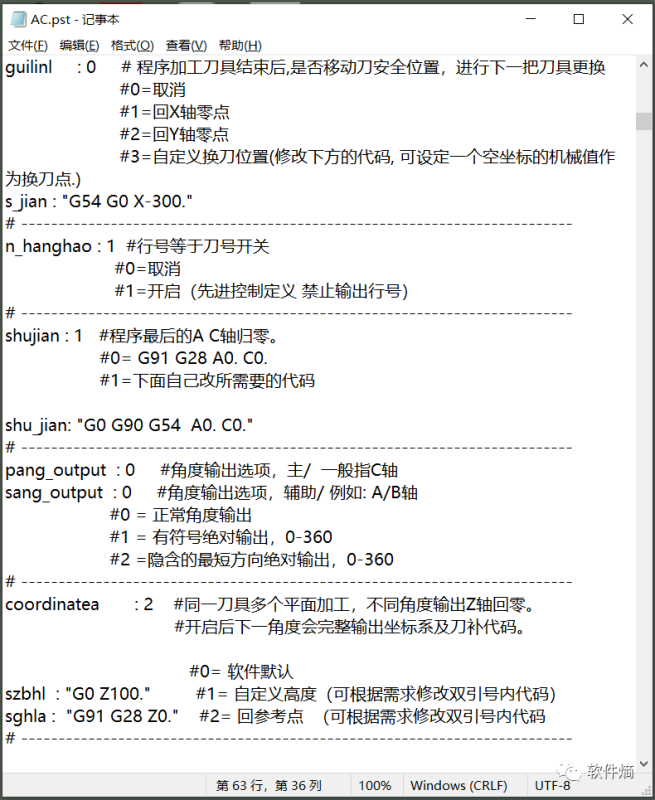

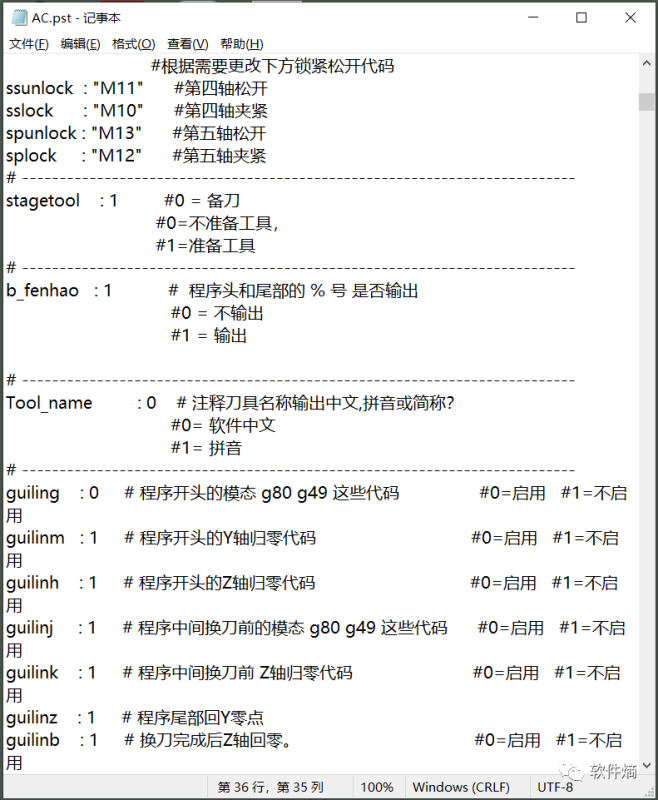

程序格式

%

O0001

(DATE=DD-MM-YY – 31-05-23 TIME=HH:MM – 15:16)

(T1|10 平铣刀 |H1—L75.)

N1 G0 G17 G40 G80 G90 G94 G98

(10 平铣刀 |T 1|DIA. OFF. – 1|LEN. – 1)

N1

N2 T1 M6

N3 G65 P9012 C0. A0.

N4 G0 G54.2P1 G90 X-28.132 Y24.998 C0. A0. S6000 M3

N5 G43 H1 Z25.

N6 Z10.

N7 G1 Z0. F600.

N8 X23.132 F1000.

N9 X30.274

N10 G2 Y17.856 J-3.571

N11 G1 X-30.274

N12 X-31.

N13 G3 Y10.713 J-3.571

N14 G1 X31.

N15 G2 Y3.571 J-3.571

N16 G1 X-31.

N17 G3 Y-3.571 J-3.571

N18 G1 X31.

N19 G2 Y-10.713 J-3.571

N20 G1 X-31.

N21 G3 Y-17.856 J-3.572

N22 G1 X30.274

N23 G2 Y-24.998 J-3.571

N24 G1 X-28.132

N25 G0 Z25.

N26 Z42.678

N27 X25.897 Y17.68

N28 G91 G28 Z0.

······

N29 G65 P9012 C180. A-45.

N30 G0 G54 G90 X25.897 Y17.68 C180. A-45. S6000 M3

N31 G43 H1 Z42.678

N32 Z27.678

N33 G1 Z17.678 F600.

N34 X-20.897 F1000.

N35 X-22.968

N36 G2 Y24.75 J3.535

N37 G1 X22.968

N38 X25.039

N39 G3 Y31.82 J3.535

N40 G1 X-25.039

N41 X-27.11

N42 G2 Y38.89 J3.535

N43 G1 X27.11

N44 X29.181

N45 G3 Y45.96 J3.535

N46 G1 X-29.181 Y45.961

N47 X-31.251

N48 G2 Y53.031 J3.536

N49 G1 X36.251

N50 G0 Z42.678

N51 Z44.822

N52 X-28.929 Y55.176

N53 G91 G28 Z0.

······

N54 G65 P9012 C135. A-45.

N55 G0 G54 G90 X-28.929 Y55.176 C135. A-45. S6000 M3

N56 G43 H1 Z44.822

N57 Z29.822

N58 G1 Z19.822 F600.

N59 X23.929 F1000.

N60 G2 Y48.105 J-3.535

N61 G1 X-21.858

N62 G3 Y41.035 J-3.535

N63 G1 X19.787

N64 G2 Y33.965 J-3.535

N65 G1 X-17.717

N66 G3 Y26.895 J-3.535

N67 G1 X15.646

N68 G2 Y19.824 J-3.536

N69 G1 X-18.575

N70 G0 Z44.822

N71 G91 G28 Z0.

······

N72 G65 P9012 C90. A-45.

N73 G0 G54 G90 X25.897 Y17.68 C90. A-45. S6000 M3

N74 G43 H1 Z42.678

N75 Z44.822

N76 Z42.678

N77 Z27.678

N78 G1 Z17.678 F600.

N79 X-20.897 F1000.

N80 X-22.968

N81 G2 Y24.75 J3.535

N82 G1 X22.968

N83 X25.039

N84 G3 Y31.82 J3.535

N85 G1 X-25.039

N86 X-27.11

N87 G2 Y38.89 J3.535

N88 G1 X27.11

N89 X29.181

N90 G3 Y45.96 J3.535

N91 G1 X-29.181 Y45.961

N92 X-31.251

N93 G2 Y53.031 J3.536

N94 G1 X36.251

N95 G0 Z42.678

N96 Z44.822

N97 X-28.929 Y55.176

N98 G91 G28 Z0.

······

N99 G65 P9012 C45. A-45.

N100 G0 G54 G90 X-28.929 Y55.176 C45. A-45. S6000 M3

N101 G43 H1 Z44.822

N102 Z29.822

N103 G1 Z19.822 F600.

N104 X23.929 F1000.

N105 G2 Y48.105 J-3.535

N106 G1 X-21.858

N107 G3 Y41.035 J-3.535

N108 G1 X19.787

N109 G2 Y33.965 J-3.535

N110 G1 X-17.717

N111 G3 Y26.895 J-3.535

N112 G1 X15.646

N113 G2 Y19.824 J-3.536

N114 G1 X-18.575

N115 G0 Z44.822

N116 X-28.929 Y55.176

N117 Z29.822

N118 G1 Z19.822 F600.

N119 X23.929 F1000.

N120 G2 Y48.105 J-3.535

N121 G1 X-21.858

N122 G3 Y41.035 J-3.535

N123 G1 X19.787

N124 G2 Y33.965 J-3.535

N125 G1 X-17.717

N126 G3 Y26.895 J-3.535

N127 G1 X15.646

N128 G2 Y19.824 J-3.536

N129 G1 X-18.575

N130 G0 Z44.822

······

N131 G91 G28 Z0.

N132 G65 P9012 C0. A-45.

N133 G0 G54 G90 X25.897 Y17.68 C0. A-45. S6000 M3

N134 G43 H1 Z42.678

N135 Z44.822

N136 Z42.678

N137 Z27.678

N138 G1 Z17.678 F600.

N139 X-20.897 F1000.

N140 X-22.968

N141 G2 Y24.75 J3.535

N142 G1 X22.968

N143 X25.039

N144 G3 Y31.82 J3.535

N145 G1 X-25.039

N146 X-27.11

N147 G2 Y38.89 J3.535

N148 G1 X27.11

N149 X29.181

N150 G3 Y45.96 J3.535

N151 G1 X-29.181 Y45.961

N152 X-31.251

N153 G2 Y53.031 J3.536

N154 G1 X36.251

N155 G0 Z42.678

N156 Z44.822

N157 X-28.929 Y55.176

······

N158 G91 G28 Z0.

N159 G65 P9012 C-45. A-45.

N160 G0 G54 G90 X-28.929 Y55.176 C-45. A-45. S6000 M3

N161 G43 H1 Z44.822

N162 Z29.822

N163 G1 Z19.822 F600.

N164 X23.929 F1000.

N165 G2 Y48.105 J-3.535

N166 G1 X-21.858

N167 G3 Y41.035 J-3.535

N168 G1 X19.787

N169 G2 Y33.965 J-3.535

N170 G1 X-17.717

N171 G3 Y26.895 J-3.535

N172 G1 X15.646

N173 G2 Y19.824 J-3.536

N174 G1 X-18.575

N175 G0 Z44.822

······

N176 G91 G28 Z0.

N177 G65 P9012 C-90. A-45.

N178 G0 G54 G90 X25.897 Y17.68 C-90. A-45. S6000 M3

N179 G43 H1 Z42.678

N180 Z44.822

N181 Z42.678

N182 Z27.678

N183 G1 Z17.678 F600.

N184 X-20.897 F1000.

N185 X-22.968

N186 G2 Y24.75 J3.535

N187 G1 X22.968

N188 X25.039

N189 G3 Y31.82 J3.535

N190 G1 X-25.039

N191 X-27.11

N192 G2 Y38.89 J3.535

N193 G1 X27.11

N194 X29.181

N195 G3 Y45.96 J3.535

N196 G1 X-29.181 Y45.961

N197 X-31.251

N198 G2 Y53.031 J3.536

N199 G1 X36.251

N200 G0 Z42.678

N201 Z44.822

N202 X.274 Y63.291

······

N203 G91 G28 Z0.

N204 G65 P9012 C-135. A-45.

N205 G0 G54 G90 X.274 Y63.291 C-135. A-45. S6000 M3

N206 G43 H1 Z44.822

N207 Z29.822

N208 G1 Z19.822 F600.

N209 X23.178 Y52.611 F1000.

N210 X24.019 Y52.218

N211 G2 X21.447 Y46.702 I-1.286 J-2.758

N212 G1 X-9.596 Y61.178

N213 X-21.425 Y66.694

N214 G3 X-23.997 Y61.178 I-1.286 J-2.758

N215 G1 X19.717 Y40.794

N216 X20.558 Y40.401

N217 G2 X17.986 Y34.885 I-1.286 J-2.758

N218 G1 X-23.676 Y54.313

N219 G3 X-26.248 Y48.796 I-1.286 J-2.758

N220 G1 X16.256 Y28.977

N221 X17.097 Y28.584

N222 G2 X14.525 Y23.068 I-1.286 J-2.758

N223 G1 X-19.12 Y38.757

N224 G3 X-21.693 Y33.241 I-1.286 J-2.758

N225 G1 X12.794 Y17.159

N226 G2 X10.222 Y11.643 I-1.286 J-2.758

N227 G1 X-19.096 Y25.315

N228 G0 Z44.822

N229 M5

N230 G91 G28 Z0.

N231 G91 G28 Y0.

N232 G0 G90 G54  A0. C0.

N233 M30

%
