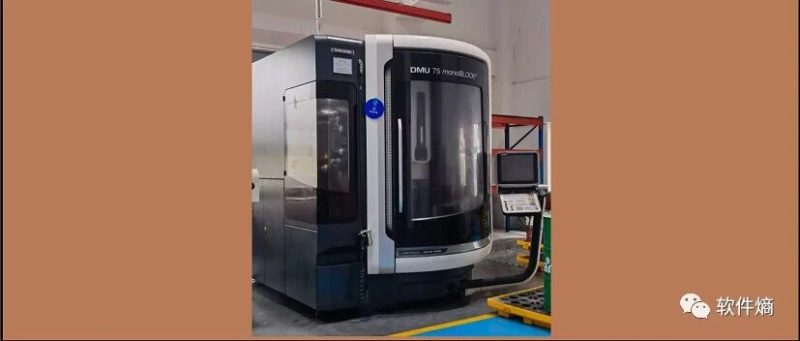

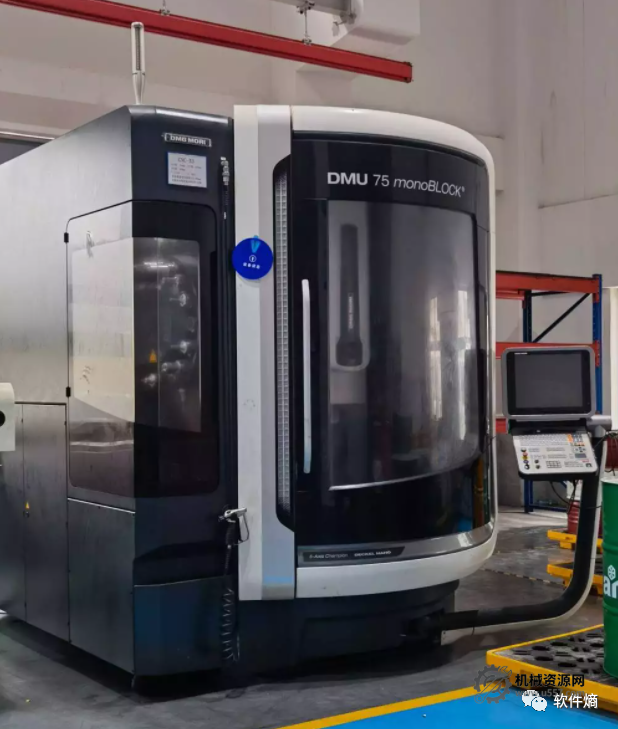

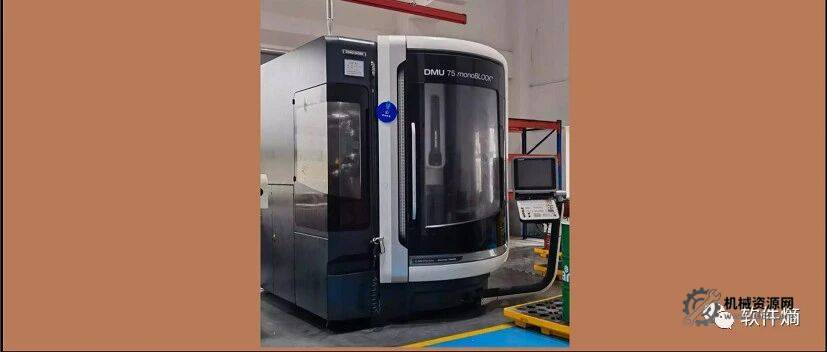

UG-德玛吉DMU75(AC轴)-海德汉640多轴后处理

UG-德玛吉DMU75(AC轴)

海德汉640多轴后处理

工厂在位上机后处理

使用版本10.0-1980

其它版本自己测试

3+2与钻孔正常加工

五轴加工联动

程序格式

1 BEGIN PGM DMU75 MM

2 FN 0: Q501=+0.0 ; X HOME POSITION

3 FN 0: Q502=-10. ; Y HOME POSITION

4 FN 0: Q503=-1. ; Z HOME POSITION

5 * – OPERATION: CONTOUR_PROFILE – TOOL: T10 D10

6 CYCL DEF 247 DATUM SETTING Q339=1

7 TOOL CALL 10 Z S9000

8 CALL LBL 999

9 M3 M8

10 CYCL DEF 7.0 DATUM SHIFT

11 CYCL DEF 7.1 X0

12 CYCL DEF 7.2 Y0

13 CYCL DEF 7.3 Z0

14 L X-29.462 Y40.009 F10000.

15 L A11.341 C89.9

16 L Z.46

17 L M126

19 L M128 F1000.

20 L X-39.188 Y-29.394 Z8.319 A11.341 C89.9 FMAX M3

21 L X-41.92 Y-29.389 Z-5.299 FMAX

22 L X-42.282 Z-7.107 F1500.

23 L X-42.243 Y-29.257 Z-7.746

32 L X-40.885 Y-24.299 Z-8.822 A11.356 C89.905

33 L X-40.864 Y-23.836 Z-8.812 A11.471 C89.907

34 L X-40.836 Y-23.218 Z-8.799 A11.627 C89.91

35 L X-40.785 Y-21.984 Z-8.773 A11.926 C89.914

356 L X26.554 Y22.976 Z-8.768 A-11.991 C90.06

357 L X26.585 Y23.602 Z-8.778 A-11.875 C90.066

358 L X26.617 Y24.228 Z-8.789 A-11.748 C90.072

359 L X26.65 Y24.855 Z-8.8 A-11.614 C90.079

360 L X26.709 Y26.121 Z-8.789

361 L X26.719 Y26.436 Z-8.764

362 L X26.724 Y26.749 Z-8.715

363 L X26.718 Y27.05 Z-8.617

364 L X26.687 Y27.283 Z-8.412

365 L X26.629 Y27.351 Z-8.111

366 L X24.484 Y27.348 Z2.323

367 L X23.252 Y27.346 Z8.319 FMAX

368 M129

369 CALL LBL 999

370 M9

371 M30

372 LBL 999

373 L M140 MB MAX

374 L ZQ503 R0 FMAX M91

375 L XQ501 YQ502 R0 FMAX M91

376 PLANE RESET TURN MB MAX FMAX

377 CYCL DEF 7.0 DATUM SHIFT

378 CYCL DEF 7.1 X+0

379 CYCL DEF 7.2 Y+0

380 CYCL DEF 7.3 Z+0

381 LBL 0

382 END PGM DMU75 MM
