hypermill2021-dmu50西门子840d-上机后处理-带机床文件

说明：请仔细阅读以下几点说明避免误会

1.看代码发那科三菱可用其它系统自测

2.带参考说明

3.不提供技术解答帮助，新手/或者不会用的你也别碰。

4.仅供参考学习，上机请仔细验证程序代码，模拟验证，提高刀具H高度空运行模拟确定安全后在加工

hypermill2021

dmu50西门子840d

上机后处理

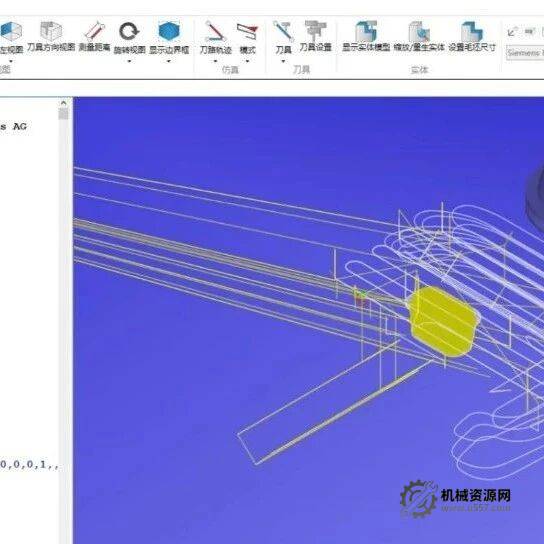

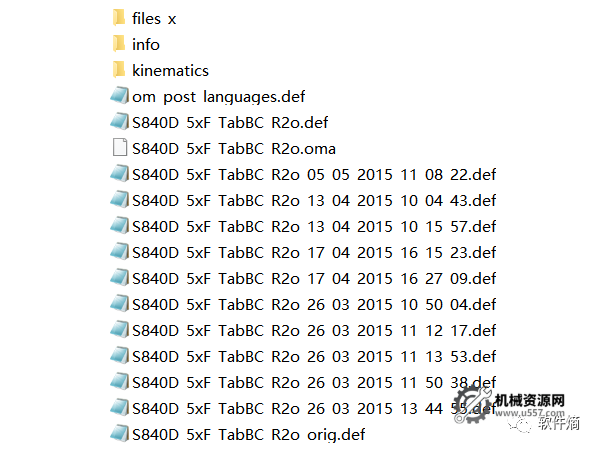

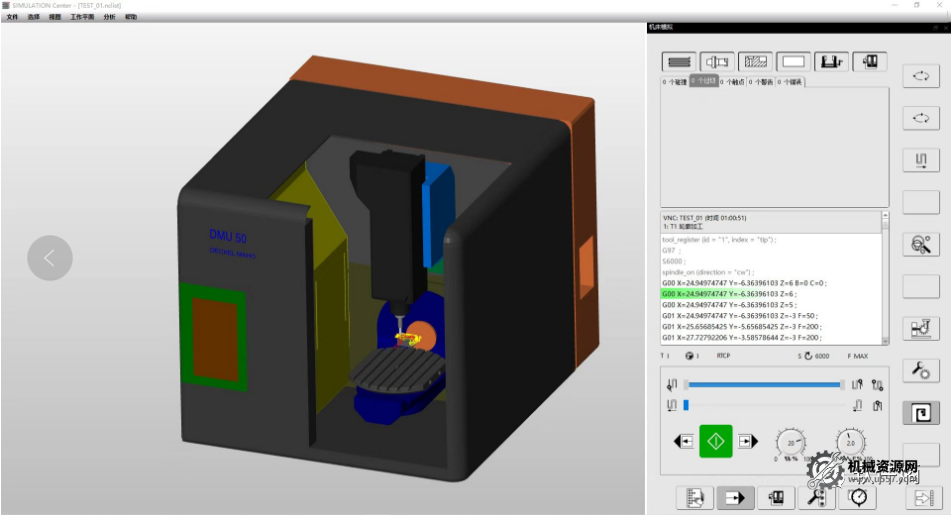

带机床文件

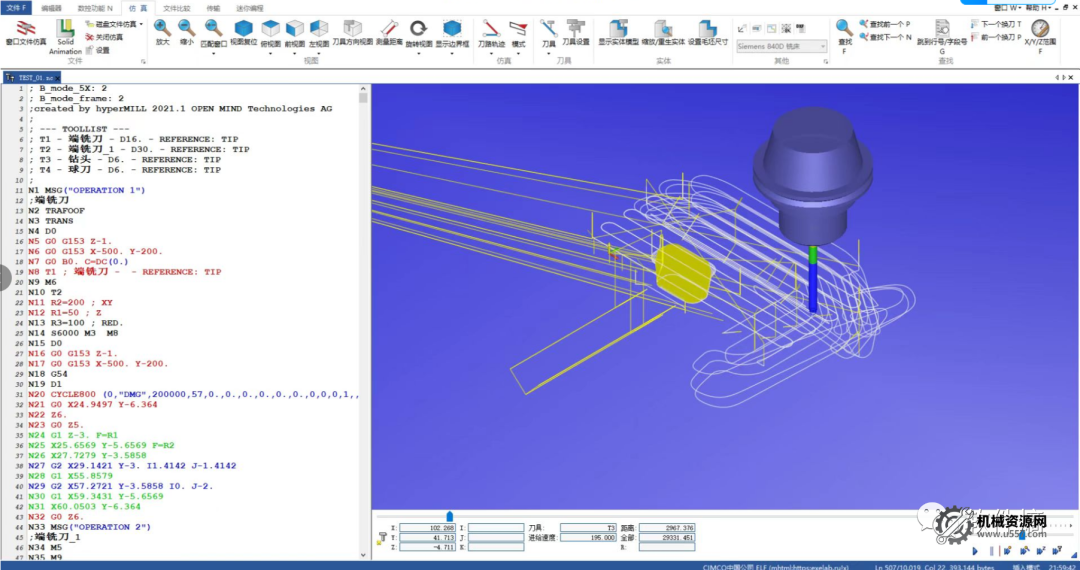

程序格式

; B_mode_5X: 2

; B_mode_frame: 2

;created by hyperMILL 2021.1 OPEN MIND Technologies AG

; — TOOLLIST —

; T1 – 端铣刀 – D16. – REFERENCE: TIP

; T2 – 端铣刀_1 – D30. – REFERENCE: TIP

; T3 – 钻头 – D6. – REFERENCE: TIP

; T4 – 球刀 – D6. – REFERENCE: TIP

N1 MSG(“OPERATION 1”)

;端铣刀

N2 TRAFOOF

N3 TRANS

N4 D0

N5 G0 G153 Z-1.

N6 G0 G153 X-500. Y-200.

N7 G0 B0. C=DC(0.)

N8 T1 ; 端铣刀 –  – REFERENCE: TIP

N9 M6

N10 T2

N11 R2=200 ; XY

N12 R1=50 ; Z

N13 R3=100 ; RED.

N14 S6000 M3  M8

N15 D0

N16 G0 G153 Z-1.

N17 G0 G153 X-500. Y-200.

N18 G54

N19 D1

N20 CYCLE800 (0,”DMG”,200000,57,0.,0.,0.,0.,0.,0.,0,0,0,1,,0)

N21 G0 X24.9497 Y-6.364

N22 Z6.

N23 G0 Z5.

N24 G1 Z-3. F=R1

N25 X25.6569 Y-5.6569 F=R2

N26 X27.7279 Y-3.5858

N27 G2 X29.1421 Y-3. I1.4142 J-1.4142

N28 G1 X55.8579

N29 G2 X57.2721 Y-3.5858 I0. J-2.

N30 G1 X59.3431 Y-5.6569

N31 X60.0503 Y-6.364

N32 G0 Z6.

N33 MSG(“OPERATION 2”)

;端铣刀_1

N34 M5

N35 M9

N36 CYCLE800()

N37 D0

N38 G0 G153 Z-1.

N39 G0 G153 X-500. Y-200.

N40 G0 B0.

N41 T2 ; 端铣刀_1 –  – REFERENCE: TIP

N42 M6

N43 T3

N44 R2=200 ; XY

N45 R1=50 ; Z

N46 R3=100 ; RED.

N47 S2000 M3  M8

N48 D0

N49 G0 G153 Z-1.

N50 G0 G153 X-500. Y-200.

N51 G54

N52 D1

N53 CYCLE800 (0,”DMG”,200000,57,0.,0.,0.,0.,0.,0.,0,0,0,1,,0)

N54 ; — 3D_begin.txt —

N55 FFWON

N56 SOFT

N57 COMPCAD

N58 G642

N59 G0 X94.7133 Y81.6279

N60 Z15.

N61 G0 Z6.2893

N62 G1 Z-3.7107 F=R1

N63 X93.5828 Y79.6649 Z-4.0055 F=R2

N64 X93.367 Y79.2225 Z-4.0696 F147

N65 X93.2137 Y78.7549 Z-4.1337

N66 X93.1258 Y78.2706 Z-4.1978

N2228 X123.1801 Y53.3894 Z-27.4772

N2229 Z-25.9772

N2230 G0 Z15.

N2231 MSG(“OPERATION 3”)

;钻头

N2232 M5

N2233 M9

N2234 CYCLE800()

N2235 D0

N2236 G0 G153 Z-1.

N2237 G0 G153 X-500. Y-200.

N2238 G0 B0.

N2239 T3 ; 钻头 –  – REFERENCE: TIP

N2240 M6

N2241 T1

N2242 S2000 M3  M8

N2243 D0

N2244 G0 G153 Z-1.

N2245 G0 G153 X-500. Y-200.

N2246 G54

N2247 D1

N2248 CYCLE800 (0,”DMG”,200000,57,0.,0.,0.,0.,0.,0.,0,0,0,1,,0)

N2249 G0 X70. Y22.5

N2250 Z15.

N2251 F50

N2252 MCALL CYCLE81 (15.,0.,5.,-1.8026,)

N2253 X70. Y22.5

N2254 MCALL

N2255 MSG(“OPERATION 9”)

;端铣刀

N2256 M5

N2257 M9

N2258 CYCLE800()

N2259 D0

N2260 G0 G153 Z-1.

N2261 G0 G153 X-500. Y-200.

N2262 G0 B0.

N2263 T1 ; 端铣刀 –  – REFERENCE: TIP

N2264 M6

N2265 T4

N2266 R2=200 ; XY

N2267 R1=50 ; Z

N2268 S6000 M3  M8

N2269 D0

N2270 G0 G153 Z-1.

N2271 G0 G153 X-500. Y-200.

N2272 G54

N2273 D1

N2274 CYCLE800 (0,”DMG”,200000,57,0.,0.,0.,0.,0.,0.,0,0,0,1,,0)

N2275 G0 X-8. Y60.

N2276 Z15.

N2277 G0 Z10.

N2278 G1 Z0. F=R1

N2279 X116. F=R2

N2280 G2 X116. Y52. I0. J-4.

N2281 G1 X108.

N2282 X-16.

N2283 G3 X-16. Y44. I0. J-4.

N2284 G1 X-8.

N2285 X116.

N2286 G2 X116. Y36. I0. J-4.

N2287 G1 X108.

N2288 X-16.

N2289 G3 X-16. Y28. I0. J-4.

N2290 G1 X-8.

N2291 X116.

N2292 G2 X116. Y20. I0. J-4.

N2293 G1 X108.

N2294 X-16.

N2295 G3 X-16. Y12. I0. J-4.

N2296 G1 X-8.

N2297 X116.

N2298 G2 X116. Y4. I0. J-4.

N2299 G1 X108.

N2300 X-16.

N2301 G0 Z15.

N2302 MSG(“OPERATION 10”)

;球刀

N2303 M5

N2304 M9

N2305 CYCLE800()

N2306 D0

N2307 G0 G153 Z-1.

N2308 G0 G153 X-500. Y-200.

N2309 G0 B0.

N2310 T4 ; 球刀 –  – REFERENCE: TIP

N2311 M6

N2312 T3

N2313 R2=200 ; XY

N2314 R1=50 ; Z

N2315 R3=100 ; RED.

N2316 S2000 M3  M8

N2317 D0

N2318 G0 G153 Z-1.

N2319 G0 G153 X-500. Y-200.

N2320 G54

N2321 D1

N2322 CYCLE800 (0,”DMG”,200000,57,0.,0.,0.,0.,0.,0.,0,0,0,1,,0)

N2323 ; — 3D_begin.txt —

N2324 FFWON

N2325 SOFT

N2326 COMPCAD

N2327 G642

N2328 G0 X15.3049 Y14.8422

N2329 Z15.

N2330 G0 Z10.3

N2331 G1 Z10. F=R1

N2332 X15.5223 Y14.594 Z0.3 F=R3

N2333 X16.7696 Y13.1696 Z0.0164 F=R2

N2334 X16.9058 Y13.0141 Z-0.0027

N2335 X17.2213 Y12.6538

N2336 X17.5583 Y12.3132

N2337 X17.9146 Y11.9928

N5567 X20.3773 Y14.92 Z-14.9293

N5568 X21.7343 Y14.4318 Z-14.6451

N5569 Z-5. F=R1

N5570 G0 Z15.

N5571 MSG(“OPERATION 4”)

;钻头

N5572 M5

N5573 M9

N5574 CYCLE800()

N5575 D0

N5576 G0 G153 Z-1.

N5577 G0 G153 X-500. Y-200.

N5578 G0 B0.

N5579 T3 ; 钻头 –  – REFERENCE: TIP

N5580 M6

N5581 T4

N5582 R2=0 ; XY

N5583 R1=50 ; Z

N5584 S2000 M3  M8

N5585 D0

N5586 G0 G153 Z-1.

N5587 G0 G153 X-500. Y-200.

N5588 G0 G54 B44.476 C=DC(54.732)

N5589 D1

N5590 CYCLE800 (0,”DMG”,200000,57,86.581,45.0931,15.,-38.718,23.862,63.224,0,0,0,1,,0)

N5591 G0 X0. Y0.

N5592 G0 Z0.

N5593 CYCLE800()

N5594 TRAORI

N5595 G54

N5596 ; — 5X_begin.txt —

N5597 FFWON

N5598 SOFT

N5599 COMPCAD

N5600 G642

N5601 CYCLE832(0.007,1,1)

N5602 FGROUP (X,Y,Z,B,C)

N5603 G0 X86.581 Y45.0931 Z15. B44.476 C=DC(54.732)

N5604 G0 Z-0.6115 B44.476 C=DC(54.732)

N5605 G0 X84.8213 Y42.6048 Z-3.7154 B44.476 C=DC(54.732)

N5606 TRAFOOF

N5607 G54

N5608 CYCLE800 (0,”DMG”,200000,57,82.7987,39.7447,-7.2831,-38.718,23.862,153.224,0,0,0,1,,0)

N5609 G0 X0. Y0. Z5.

N5610 F50

N5611 MCALL CYCLE81 (5.,0.,5.,-1.8026,)

N5612 X0. Y0.

N5613 MCALL

N5614 CYCLE800()

N5615 TRAORI

N5616 G54

N5617 G0 X86.581 Y45.0931 Z-0.6115 B44.476 C=DC(54.732)

N5618 G0 Z15. B44.476 C=DC(54.732)

N5619 G0 X103.1938 Y29.2493 B45. C=DC(0.)

N5620 G0 B60. C=DC(0.)

N5621 G0 Z-6.8318 B60. C=DC(0.)

N5622 G0 X99.4266 Z-9.0067 B60. C=DC(0.)

N5623 TRAFOOF

N5624 G54

N5625 CYCLE800 (0,”DMG”,200000,57,94.8514,14.6207,-11.0824,0.,60.,90.,0,0,0,1,,0)

N5626 G0 X14.6286 Y-0.49 Z5.

N5627 F50

N5628 MCALL CYCLE81 (5.,0.,5.,-1.8026,)

N5629 X14.6286 Y-0.49

N5630 MCALL

N5631 CYCLE800()

N5632 TRAORI

N5633 G54

N5634 G0 X103.1938 Z-6.8318 B60. C=DC(0.)

N5635 G0 Z15. B60. C=DC(0.)

N5636 G0 X102.9488 Y14.6207 B60. C=DC(0.)

N5637 G0 Z-6.4074 B60. C=DC(0.)

N5638 G0 X99.1816 Z-8.5824 B60. C=DC(0.)

N5639 TRAFOOF

N5640 G54

N5641 CYCLE800 (0,”DMG”,200000,57,94.8514,14.6207,-11.0824,0.,60.,90.,0,0,0,1,,0)

N5642 G0 X0. Y0. Z5.

N5643 F50

N5644 MCALL CYCLE81 (5.,0.,5.,-1.8026,)

N5645 X0. Y0.

N5646 MCALL

N5647 CYCLE800()

N5648 TRAORI

N5649 G54

N5650 G0 X102.9488 Z-6.4074 B60. C=DC(0.)

N5651 G0 Z15. B60. C=DC(0.)

N5652 G0 B45. C=DC(0.)

N5653 G0 X35. Y-10.8 B45. C=DC(270.)

N5654 G0 B90. C=DC(270.)

N5655 G0 Z-20. B90. C=DC(270.)

N5656 G0 Y-5. B90. C=DC(270.)

N5657 TRAFOOF

N5658 G54

N5659 CYCLE800 (0,”DMG”,200000,57,15.,0.,-20.,90.,0.,0.,0,0,0,1,,0)

N5660 G0 X20. Y0. Z5.

N5661 F50

N5662 MCALL CYCLE81 (5.,0.,5.,-1.8026,)

N5663 X20. Y0.

N5664 MCALL

N5665 CYCLE800()

N5666 TRAORI

N5667 G54

N5668 G0 Y-10.8 B90. C=DC(270.)

N5669 G0 Z15. B90. C=DC(270.)

N5670 G0 X26. B90. C=DC(270.)

N5671 G0 Z-30. B90. C=DC(270.)

N5672 G0 Y-5. B90. C=DC(270.)

N5673 TRAFOOF

N5674 G54

N5675 CYCLE800 (0,”DMG”,200000,57,15.,0.,-20.,90.,0.,0.,0,0,0,1,,0)

N5676 G0 X11. Y-10. Z5.

N5677 F50

N5678 MCALL CYCLE81 (5.,0.,5.,-1.8026,)

N5679 X11. Y-10.

N5680 MCALL

N5681 CYCLE800()

N5682 TRAORI

N5683 G54

N5684 G0 Y-10.8 B90. C=DC(270.)

N5685 G0 Z15. B90. C=DC(270.)

N5686 G0 X15. B90. C=DC(270.)

N5687 G0 Z-20. B90. C=DC(270.)

N5688 G0 Y-5. B90. C=DC(270.)

N5689 TRAFOOF

N5690 G54

N5691 CYCLE800 (0,”DMG”,200000,57,15.,0.,-20.,90.,0.,0.,0,0,0,1,,0)

N5692 G0 X0. Y0. Z5.

N5693 F50

N5694 MCALL CYCLE81 (5.,0.,5.,-1.8026,)

N5695 X0. Y0.

N5696 MCALL

N5697 CYCLE800()

N5698 TRAORI

N5699 G54

N5700 G0 Y-10.8 B90. C=DC(270.)

N5701 G0 Z15. B90. C=DC(270.)

N5702 G0 B45. C=DC(270.)

N5703 G0 X32.6427 Y56.4974 B45. C=DC(90.)

N5704 G0 B50. C=DC(90.)

N5705 G0 Z-6.2797 B50. C=DC(90.)

N5706 G0 Y53.1651 Z-9.0759 B50. C=DC(90.)

N5707 TRAFOOF

N5708 G54

N5709 CYCLE800 (0,”DMG”,200000,57,32.6427,49.3349,-12.2898,-50.,0.,180.,0,0,0,1,,0)

N5710 G0 X0. Y0. Z5.

N5711 F50

N5712 MCALL CYCLE81 (5.,0.,5.,-1.8026,)

N5713 X0. Y0.

N5714 MCALL

N5715 CYCLE800()

N5716 TRAORI

N5717 G54

N5718 G0 Y56.4974 Z-6.2797 B50. C=DC(90.)

N5719 G0 Z15. B50. C=DC(90.)

N5720 MSG(“OPERATION 5”)

;球刀

N5721 M5

N5722 M9

N5723 TRAFOOF

N5724 D0

N5725 G0 G153 Z-1.

N5726 G0 G153 X-500. Y-200.

N5727 G0 B0.

N5728 T4 ; 球刀 –  – REFERENCE: TIP

N5729 M6

N5730 T1

N5731 R2=200 ; XY

N5732 R1=50 ; Z

N5733 R3=100 ; RED.

N5734 S2000 M3  M8

N5735 D0

N5736 G0 G153 Z-1.

N5737 G0 G153 X-500. Y-200.

N5738 G0 G54 B15. C=DC(87.395)

N5739 D1

N5740 CYCLE800 (0,”DMG”,200000,57,19.2063,17.7732,15.,-14.985,0.674,87.483,0,0,0,1,,0)

N5741 G0 X0. Y0.

N5742 G0 Z0.

N5743 CYCLE800()

N5744 TRAORI

N5745 G54

N5746 ; — 5X_begin.txt —

N5747 FFWON

N5748 SOFT

N5749 COMPCAD

N5750 G642

N5751 CYCLE832(0.007,1,1)

N5752 FGROUP (X,Y,Z,B,C)

N5753 G0 X19.2063 Y17.7732 Z15. B15. C=DC(87.395)

N5754 G0 X19.171 Y16.9975 Z7.1844 B15. C=DC(87.395)

N5755 G1 X19.0534 Y14.412 Z-2.4748 B15. C=DC(87.395) F=R1

N5756 X19.2178 Y14.2047 Z-2.4941 B15. C=DC(88.029) F=R2

N5757 X19.4975 Y13.9032 Z-2.5241 B15. C=DC(89.013)

N5758 X19.8 Y13.6244 Z-2.554 B15. C=DC(89.998)

N7588 X42.0538 Y12.572 Z-8.547 B15. C=DC(146.081)

N7589 X42.1919 Y12.5836 Z-8.5485 B15. C=DC(146.733)

N7590 X42.3292 Y12.601 Z-8.55 B15. C=DC(147.384)

N9824 G0 X21.9384 Y15.5919 Z-3.1638 B15. C=DC(31.552)

N9825 G0 Z15. B15. C=DC(31.552)

N9826 MSG(“OPERATION 6”)

;端铣刀

N9827 M5

N9828 M9

N9829 TRAFOOF

N9830 D0

N9831 G0 G153 Z-1.

N9832 G0 G153 X-500. Y-200.

N9833 G0 B0.

N9834 T1 ; 端铣刀 –  – REFERENCE: TIP

N9835 M6

N9836 T3

N9837 R2=200 ; XY

N9838 R1=50 ; Z

N9839 S6000 M3  M8

N9840 D0

N9841 G0 G153 Z-1.

N9842 G0 G153 X-500. Y-200.

N9843 G54

N9844 D1

N9845 CYCLE800 (0,”DMG”,200000,57,0.,39.0225,0.,-50.,0.,0.,0,0,0,1,,0)

N9846 G0 X-8. Y32.6352

N9847 Z15.

N9848 G0 Z10.

N9849 G1 Z0. F=R1

N9850 X93.4011 F=R2

N9851 G2 X93.4011 Y24.6352 I0. J-4.

N9852 G1 X90.6165

N9853 X-8.

N9854 G3 X-8. Y16.6352 I0. J-4.

N9855 G1 X87.0783

N9856 G2 X87.0783 Y8.6352 I0. J-4.

N9857 G1 X83.5401

N9858 X-8.

N9859 G3 X-8. Y0.6352 I0. J-4.

N9860 G1 X80.0018

N9861 G0 Z15.

N9862 MSG(“OPERATION 7”)

;端铣刀

N9863 R2=200 ; XY

N9864 R1=50 ; Z

N9865 CYCLE800()

N9866 D0

N9867 G0 G153 Z-1.

N9868 G0 G153 X-500. Y-200.

N9869 G54

N9870 D1

N9871 CYCLE800 (0,”DMG”,200000,57,89.296,46.7691,-16.5979,-38.718,23.862,243.75,0,0,0,1,,0)

N9872 G0 X-22.8456 Y10.704

N9873 Z15.

N9874 G0 Z10.

N9875 G1 Z0. F=R1

N9876 X31.7866 F=R2

N9877 G2 X31.7866 Y2.704 I0. J-4.

N9878 G1 X31.7168

N9879 X-31.6677

N9880 G3 X-31.6677 Y-5.296 I0. J-4.

N9881 G1 X-28.516

N9882 X31.6433

N9883 G0 Z15.

N9884 MSG(“OPERATION 8”)

;端铣刀

N9885 R2=200 ; XY

N9886 R1=50 ; Z

N9887 CYCLE800()

N9888 D0

N9889 G0 G153 Z-1.

N9890 G0 G153 X-500. Y-200.

N9891 G54

N9892 D1

N9893 CYCLE800 (0,”DMG”,200000,57,94.8514,14.6208,-11.0824,0.,60.,90.,0,0,0,1,,0)

N9894 G0 X-22.6208 Y12.7968

N9895 Z15.

N9896 G0 Z10.

N9897 G1 Z0. F=R1

N9898 X21.9295 F=R2

N9899 X27.7429

N9900 G2 X27.7429 Y4.7968 I0. J-4.

N9901 G1 X-22.6208

N9902 G3 X-22.6208 Y-3.2032 I0. J-4.

N9903 G1 X33.5564

N9904 G0 Z15.

N9905 MSG(“OPERATION 11”)

;端铣刀

N9906 R2=200 ; XY

N9907 R1=50 ; Z

N9908 R3=100 ; RED.

N9909 CYCLE800()

N9910 D0

N9911 G0 G153 Z-1.

N9912 G0 G153 X-500. Y-200.

N9913 G54

N9914 D1

N9915 CYCLE800 (0,”DMG”,200000,57,0.,39.0225,0.,-50.,0.,0.,0,0,0,1,,0)

N9916 G0 X-1. Y1.

N9917 Z15.

N9918 G0 Z10.

N9919 G1 Z0. F=R1

N9920 G3 X0. Y0. I1. J0. F=R2

N9921 G1 X70.9734

N9922 G3 X71.9734 Y1. I0. J1.

N9923 G0 Z15.

N9924 MSG(“OPERATION 12”)

;端铣刀

N9925 R2=200 ; XY

N9926 R1=50 ; Z

N9927 CYCLE800()

N9928 D0

N9929 G0 G153 Z-1.

N9930 G0 G153 X-500. Y-200.

N9931 G54

N9932 D1

N9933 CYCLE800 (0,”DMG”,200000,57,0.,0.,0.,0.,0.,0.,0,0,0,1,,0)

N9934 G0 X-8. Y60.

N9935 Z15.

N9936 G0 Z10.

N9937 G1 Z0. F=R1

N9938 X116. F=R2

N9939 G2 X116. Y52. I0. J-4.

N9940 G1 X108.

N9941 X-16.

N9942 G3 X-16. Y44. I0. J-4.

N9943 G1 X-8.

N9944 X116.

N9945 G2 X116. Y36. I0. J-4.

N9946 G1 X108.

N9947 X-16.

N9948 G3 X-16. Y28. I0. J-4.

N9949 G1 X-8.

N9950 X116.

N9951 G2 X116. Y20. I0. J-4.

N9952 G1 X108.

N9953 X-16.

N9954 G3 X-16. Y12. I0. J-4.

N9955 G1 X-8.

N9956 X116.

N9957 G2 X116. Y4. I0. J-4.

N9958 G1 X108.

N9959 X-16.

N9960 G0 Z15.

N9961 MSG(“OPERATION 13”)

;钻头

N9962 M5

N9963 M9

N9964 CYCLE800()

N9965 D0

N9966 G0 G153 Z-1.

N9967 G0 G153 X-500. Y-200.

N9968 G0 B0.

N9969 T3 ; 钻头 –  – REFERENCE: TIP

N9970 M6

N9971 S2000 M3  M8

N9972 D0

N9973 G0 G153 Z-1.

N9974 G0 G153 X-500. Y-200.

N9975 G54

N9976 D1

N9977 CYCLE800 (0,”DMG”,200000,57,15.,0.,-20.,90.,0.,0.,0,0,0,1,,0)

N9978 G0 X20. Y0.

N9979 Z85.

N9980 F50

N9981 MCALL CYCLE83 (85.,0.,8.,-12.,,,5.,2.,0.5,0.5,1,0,,,2.)

N9982 X20. Y0.

N9983 X11. Y-10.

N9984 X0. Y0.

N9985 MCALL

N9986 M5

N9987 M9

N9988 CYCLE800()

N9989 D0

N9990 G0 G153 Z-1.

N9991 G0 G153 X-500. Y-200.

N9992 G0 B0.

N9993 T0

N9994 M6

N9995 M30
